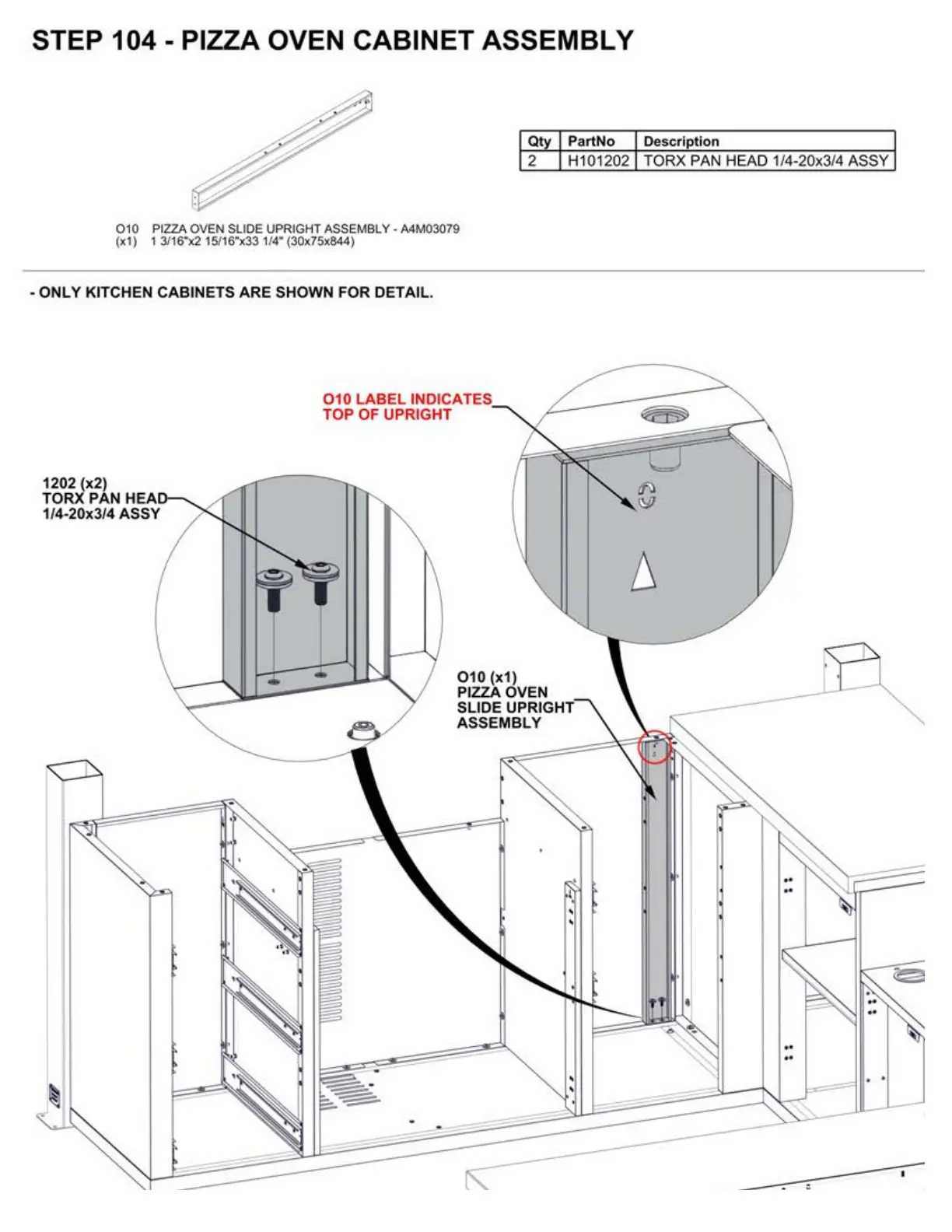

STEP 104 - PIZZA OVEN CABINET ASSEMBLY
Qty PartNo Description
2 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
0 10 PIZZA OVEN SLIDE UP RIGHT ASSE MB LY - A4 M03079
(x1) 1 3/16"x2 15/16"x33 1 /4" (30x75x844)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
1202 (x2)
TORX PAN HEA
1/4-20x3/4
ASSY
010 LABEL INDICATES
TOP OF UPRIGHT
010 (x1)
PIZZA OVEN
SLIDE UPRIGHT
ASSEMBLY
