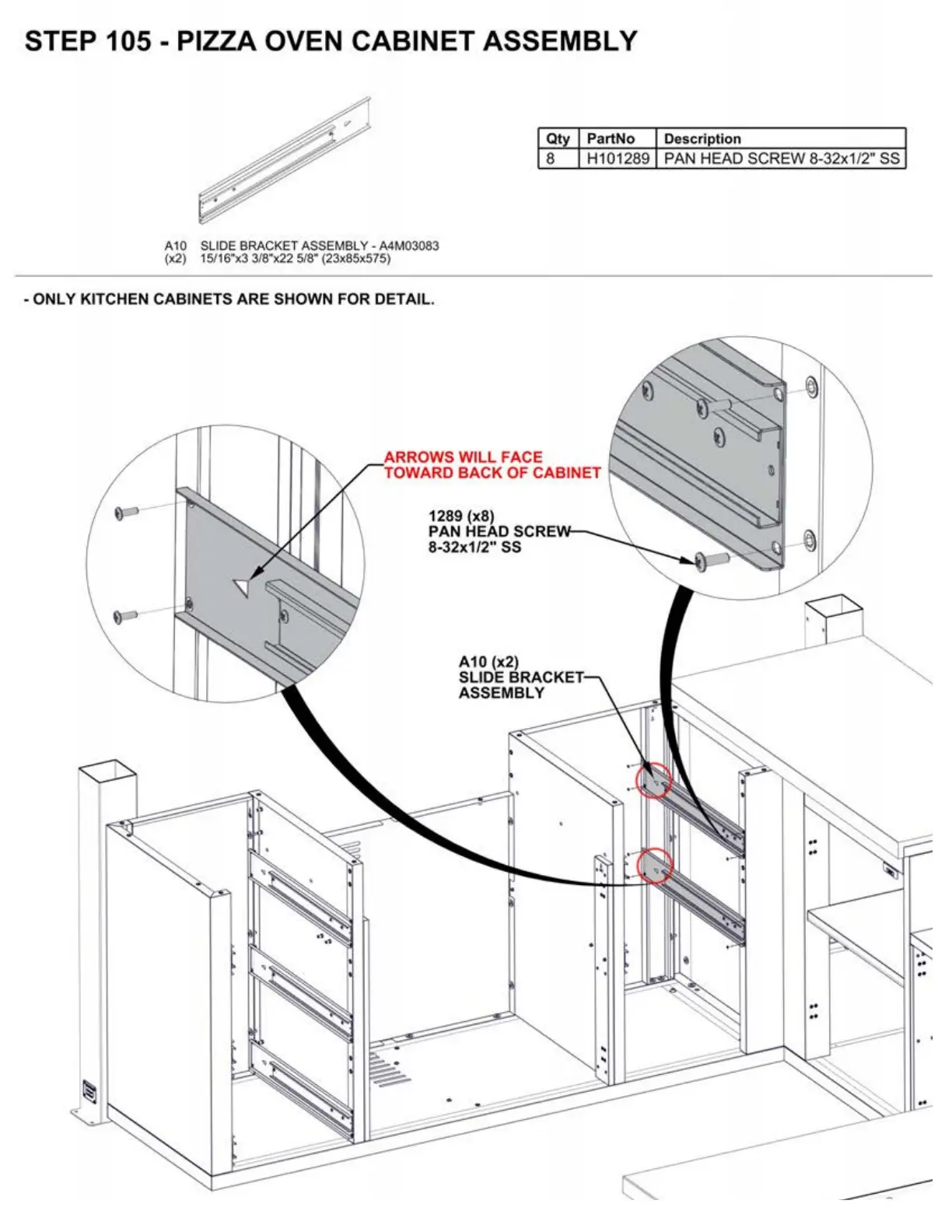

STEP 105 - PIZZA OVEN CABINET ASSEMBLY
Qty PartNo Description
8 H101289 PAN HEAD SCREW 8-32x1/2" SS
A10 SLIDE BRACKET ASSEMBLY - A4M03083
(x2) 15/16"x3 3/8"x22 5/8" (23x85x575)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
ARROWS WILL FACE
TOWARD BACK OF CABINET
1289 (x8)
PAN HEAD SCRE
8-32x1/2" SS
A10 (x2)
SLIDE BRACKET
ASSEMBLY
~
