Backyard Discovery FUSION FIRE - Page 148

148

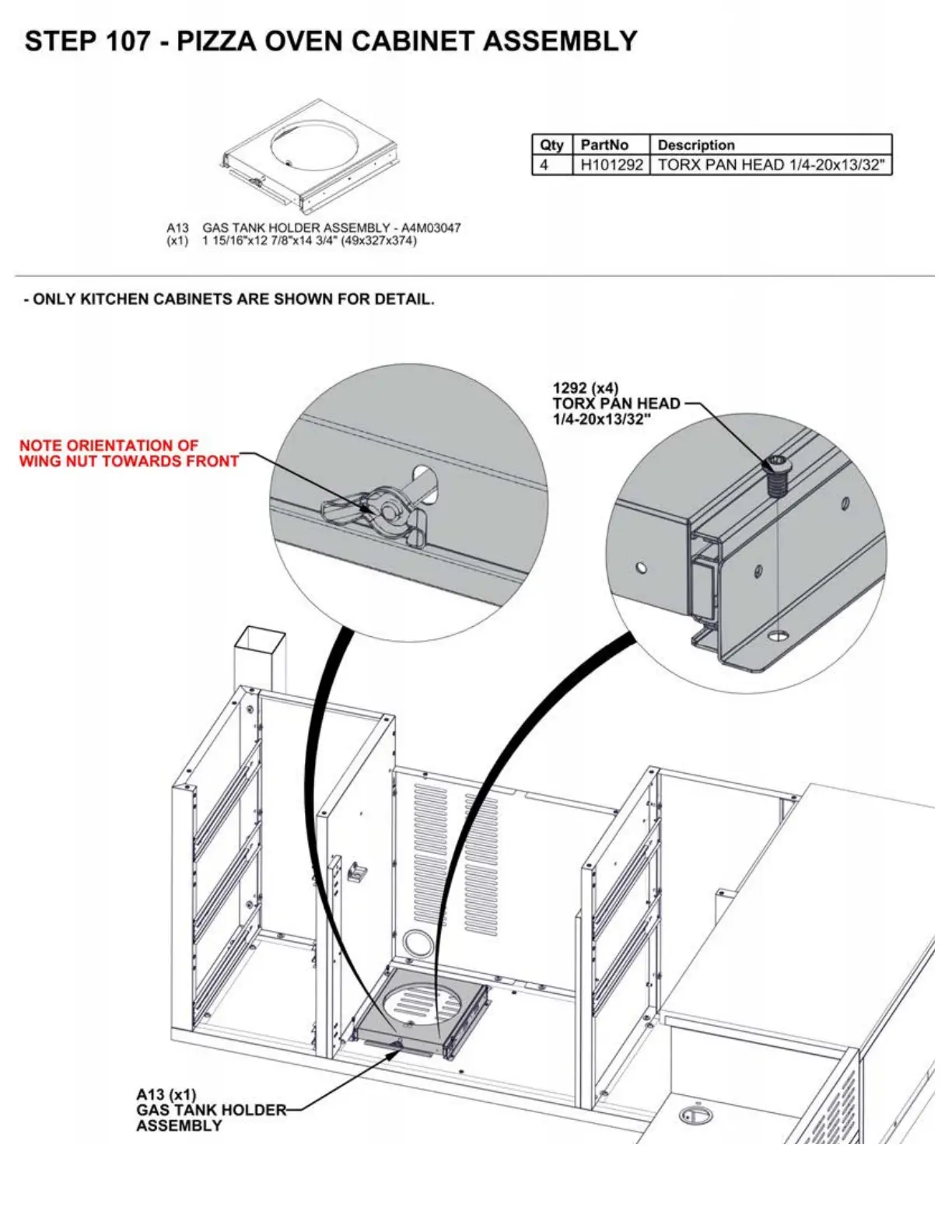

STEP 107 - PIZZA OVEN CABINET ASSEMBLY
A13 GAS TANK HOLDER ASSEM BL Y - A4 M030 47
(x1) 1 15/16"x12 7/8"x14 3/4" (49x327x374)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
NOTE ORIENTATION OF
WING NUT TOWARDS FRONT
A13 (x1)
GAS TANK HOLDER
ASSEMBLY
Qty PartNo Description
4 H101292 TORX PAN HEAD 1/4-20x13/32"
1292 (x4)
TORX PAN HEAD
1/4-20x13/32"
