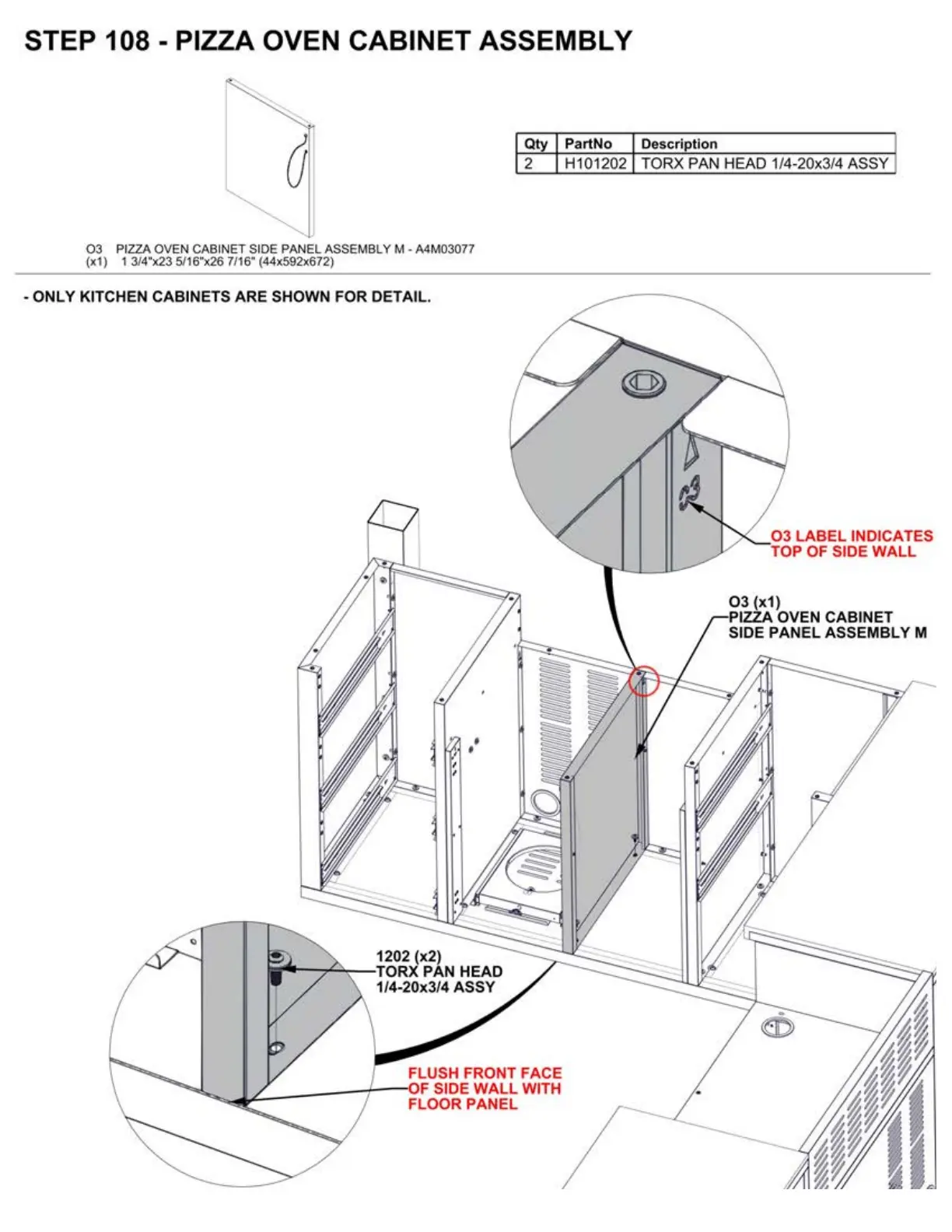

STEP 108 - PIZZA OVEN CABINET ASSEMBLY
d
03 PIZZA OVEN CABINET SIDE PANEL ASSEMBLY M - A4M03077
(x1) 1 3/4"x23 5/16"x26 7/16" (44x592x672)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
1202 (x2
~-r~-'TORX PA
1/4-20x3/
Qty PartNo Description
2 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
03 LABEL INDICATES
TOP OF SIDE WALL
03 (x1)
PIZZA OVEN CABINET
SIDE PANEL ASSEMBLY M
