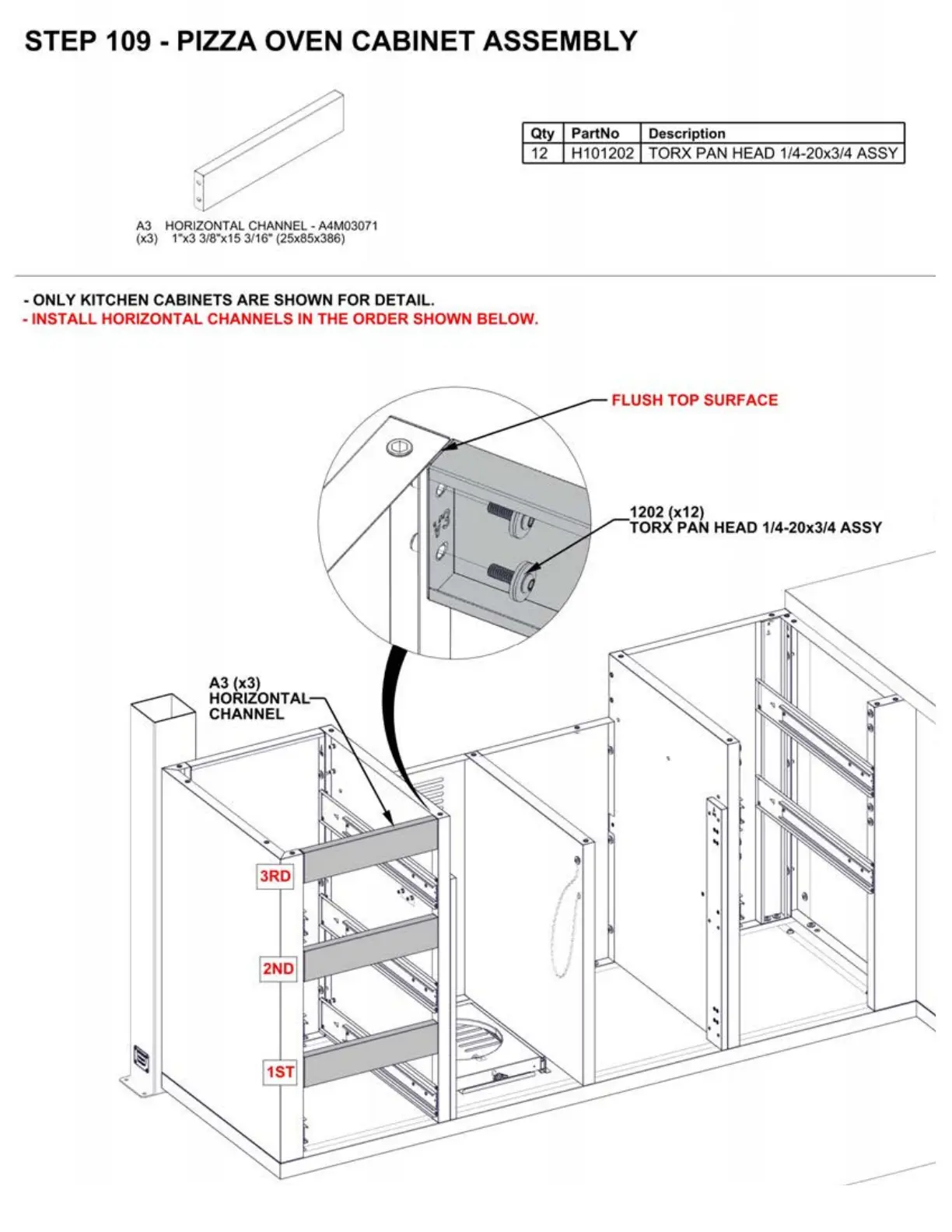

STEP 109 - PIZZA OVEN CABINET ASSEMBLY
A3 HORIZONTAL CHANNEL - A4M03071
(x3) 1 "x3 3/8"x15 3/16" (25x85x386)
• ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
Qty PartNo Description
12 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
- INSTALL HORIZONTAL CHANNELS IN THE ORDER SHOWN BELOW.
A3 (x3)
HORIZONTAL
CHANNEL
FLUSH TOP SURFACE
1202 (x12)
TORX PAN HEAD 1/4-20x3/4 ASSY
