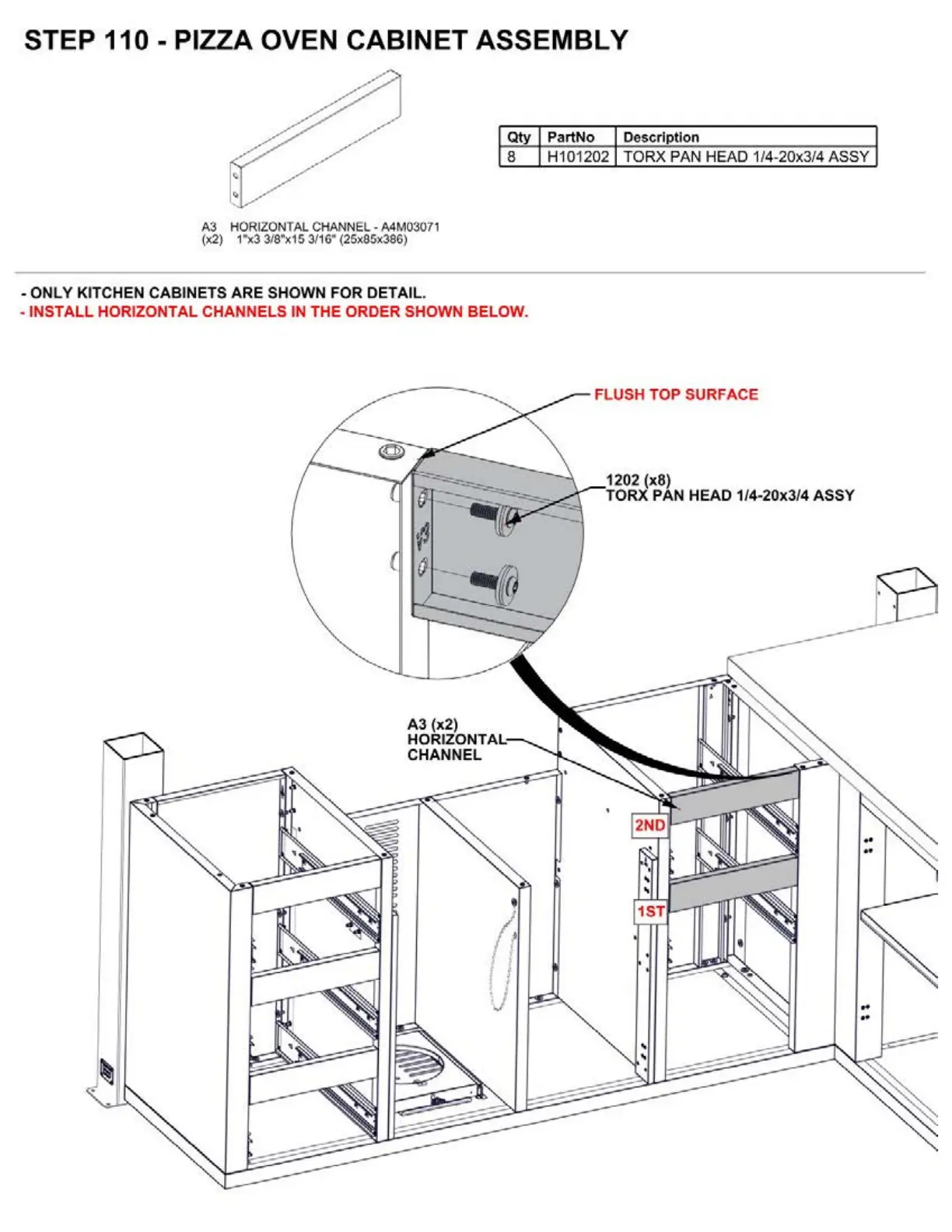

STEP 110 - PIZZA OVEN CABINET ASSEMBLY

A3 HORIZONTAL CHANNEL - A4M03071

(x2) 1"x3 3/8"x15 3/16" (25x85x386)

- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.

Qty PartNo Description

8 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY

- INSTALL HORIZONTAL CHANNELS IN THE ORDER SHOWN BELOW.

(x2)

HORIZONTAL

CHANNEL

FLUSH T

SURFACE

1202 (x8)

TORX PAN HEAD 1/4-20x3/4

ASSY
