Backyard Discovery FUSION FIRE - Page 153

153

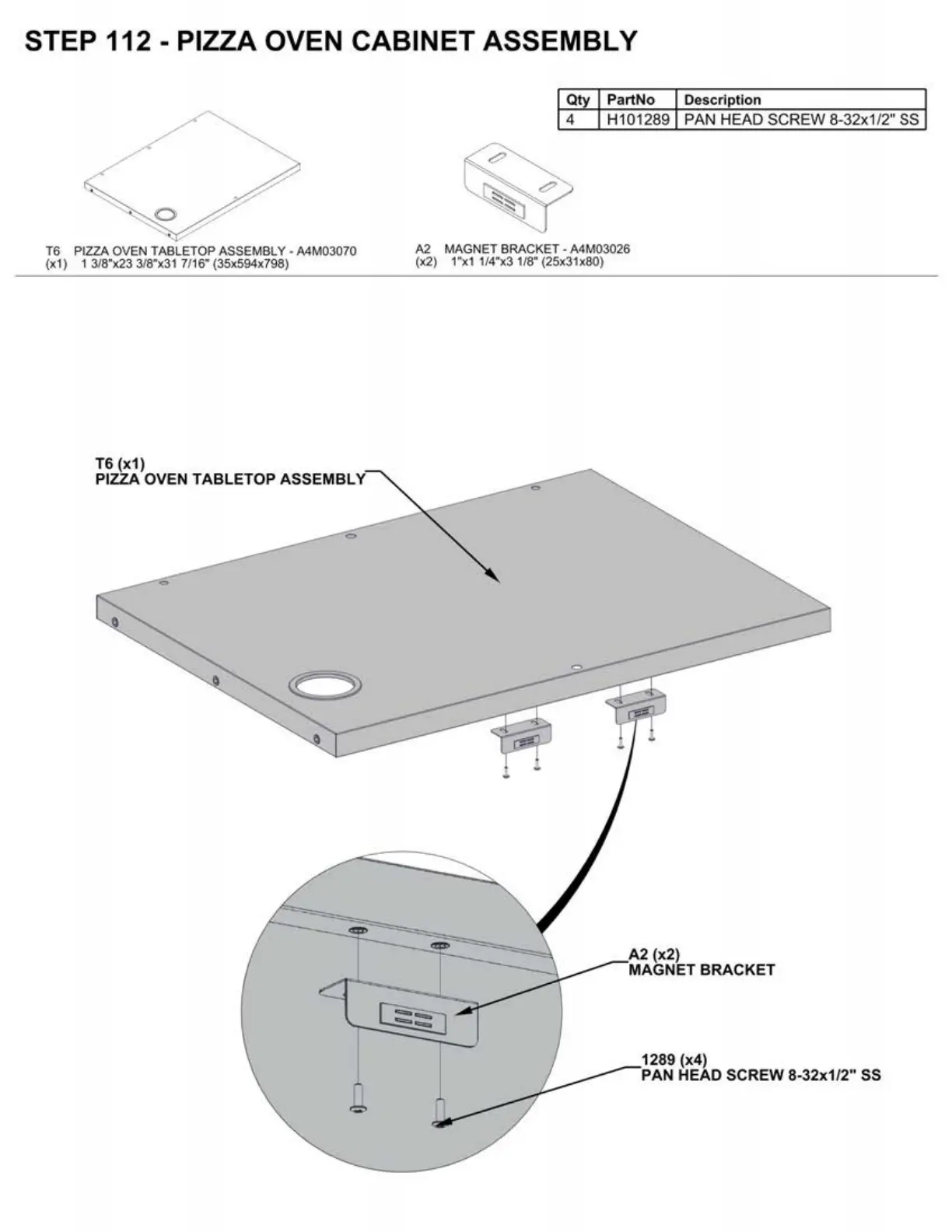

STEP 112 - PIZZA OVEN CABINET ASSEMBLY
T6 PI ZZA OV EN TABLETOP ASSEMBLY -A4M 03070
(x1) 1 3/8"
x233 /8"x31 7/16" (35x594x798)
T6 (x1)
PIZZA OVEN TABLETOP ASSEMBLY
Qty PartNo Description
4 H101289 PAN HEAD SCREW 8-32x1/2" SS
A2 MAGNET BR ACKET - A4M03026
(x2) 1"x1 1/4"x3 1/8" (25x31x80)
1289 (x4)
PAN HEAD SCREW 8-32x1/2"
SS
