154

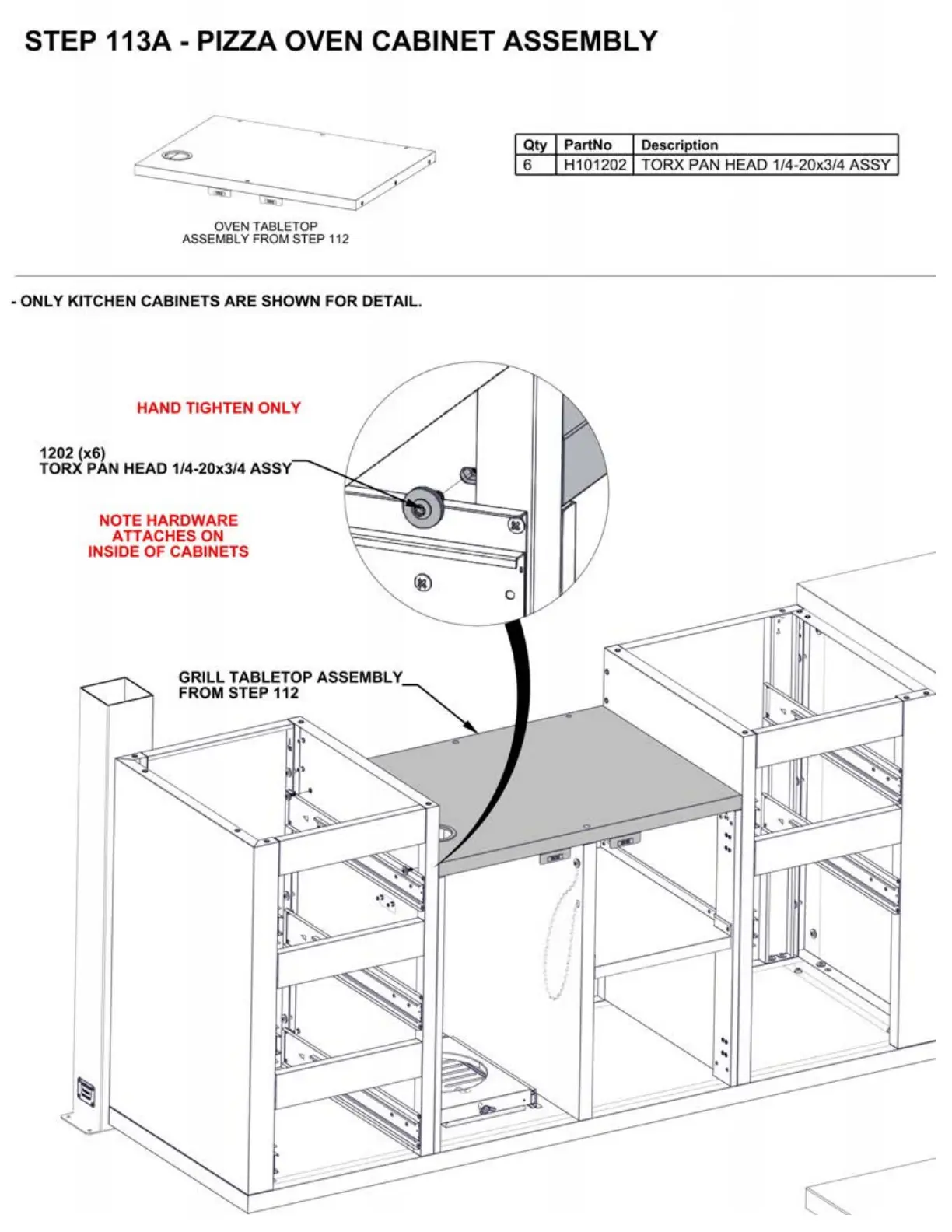

STEP 113A - PIZZA OVEN CABINET ASSEMBLY
OVEN TABLETOP
ASSEMBLY FROM STEP 112
• ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
HAND TIGHTEN ONLY
1202 (x6)
TORX PAN HEAD 1/4-20x3/4 ASSY
NOTE HARDWARE
ATTACHES
ON
INSIDE OF CABINETS
GRILL TABLETOP ASSEMBLY
FROM STEP 112
Qty PartNo Description
6 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
