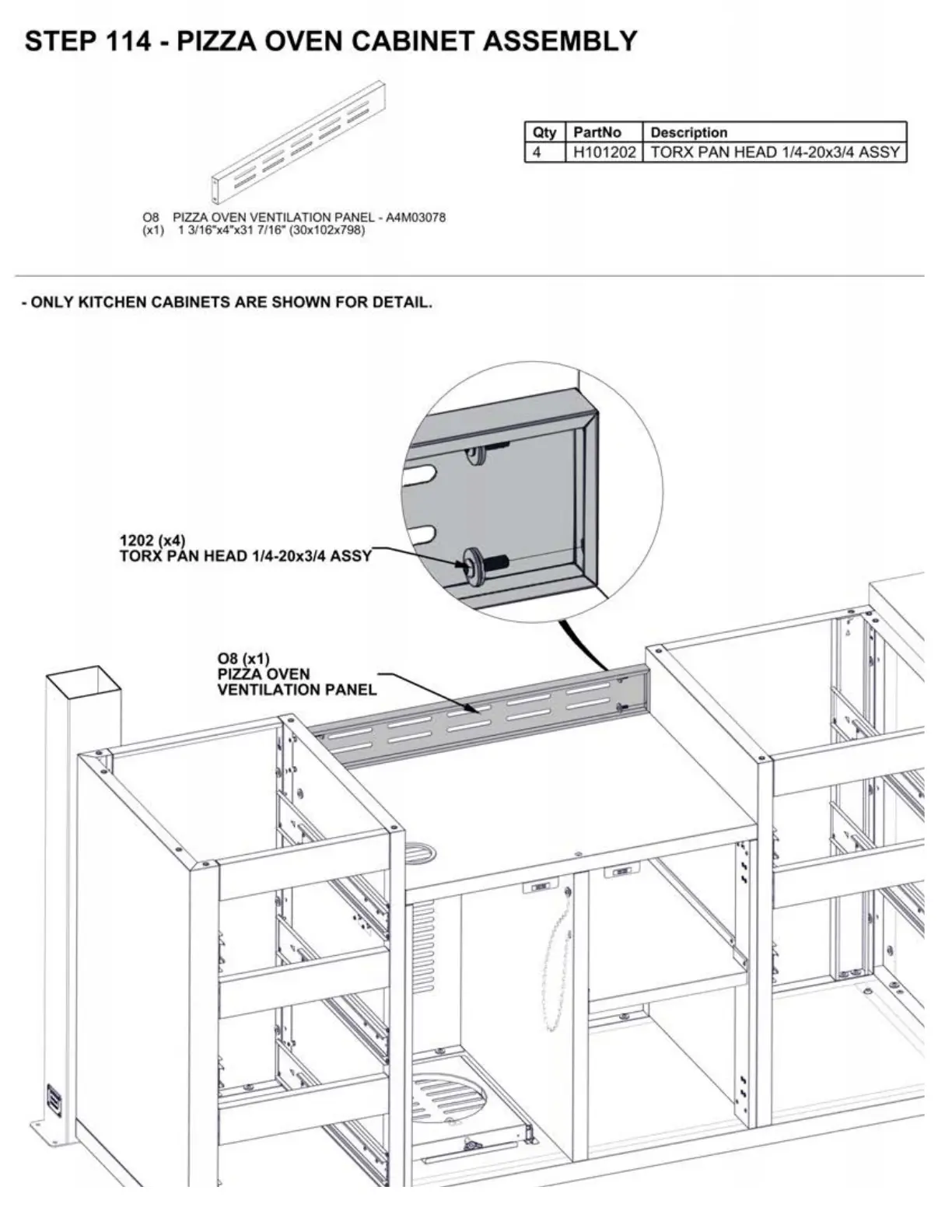

STEP 114 - PIZZA OVEN CABINET ASSEMBLY
08 PI ZZA OVEN VENTILA TI ON PA NEL- A4M03078
(x1) 1 3/16"x4"x31 7/16" (30x102x798)
· ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
1202 (x4)
TORX
PAN HEAD 1/4-20x3/4 ASSY
08 (x1)
PIZZA OVEN
VENTILATION PANEL
Qty PartNo Description
4 H101 202 TORX PAN HEAD 1/4-20x3/4 ASSY
