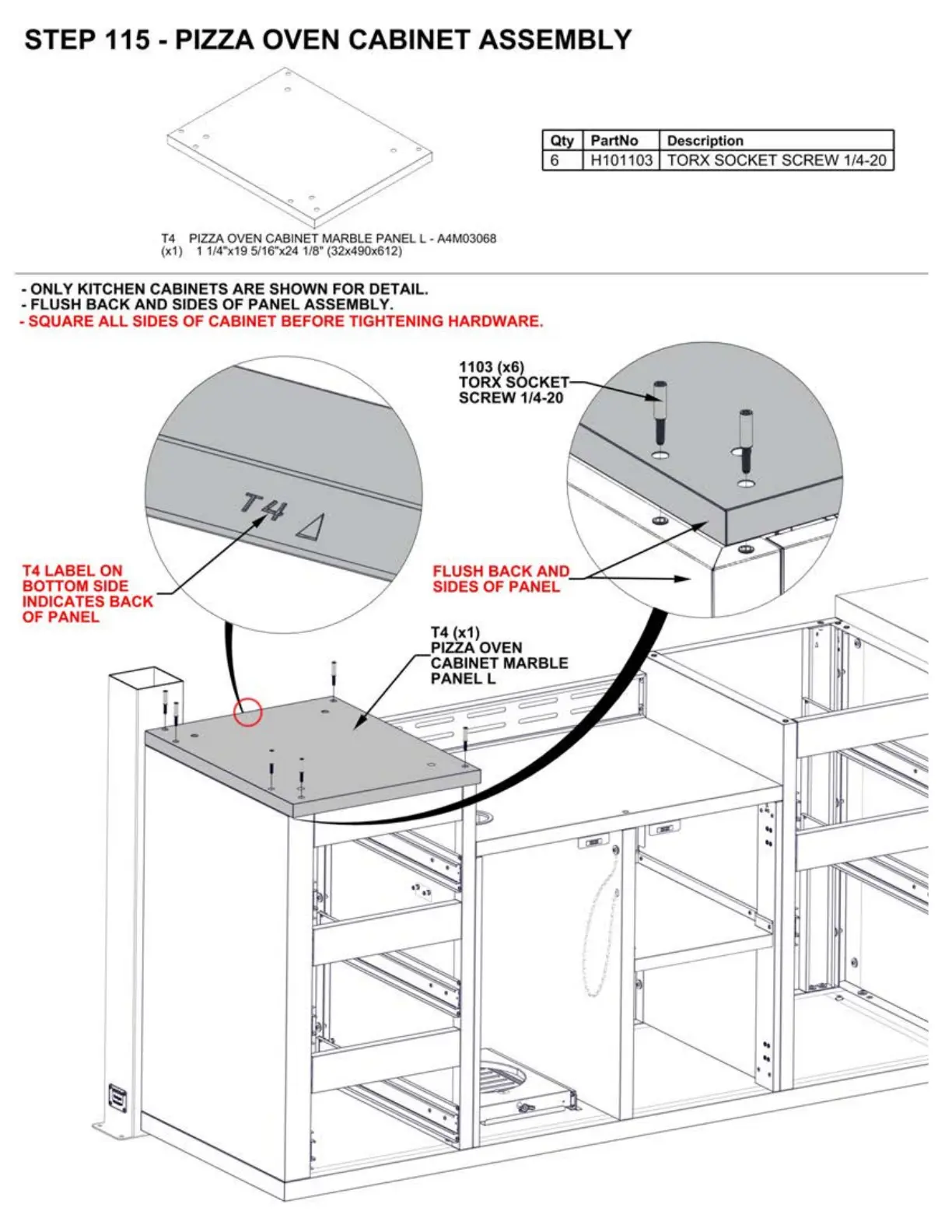

STEP 115 - PIZZA OVEN CABINET ASSEMBLY
Qty PartNo Descri ption
6 H101103 TORX SOCKET SCREW 1/4-20
T4 PIZZA OVEN CABINET MARBLE PANELL - A4M03068
(x 1) 11 /4"x19 5/16" x2 4 1/8" (32x490x612)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- FLUSH
BACK AND SIDES OF PANEL ASSEMBLY.
- SQUARE
ALL SIDES OF CABINET BEFORE TIGHTENING HARDWARE.
T4
LABEL ON
BOTTOM SIDE
INDICATES
BACK
OF PANEL
1103 (x6)
TORXSOCKET
SCREW 1/4-20
T4 (x1)
PIZZA OVEN
CABINET MARBLE
PANELL
,,
.,.
