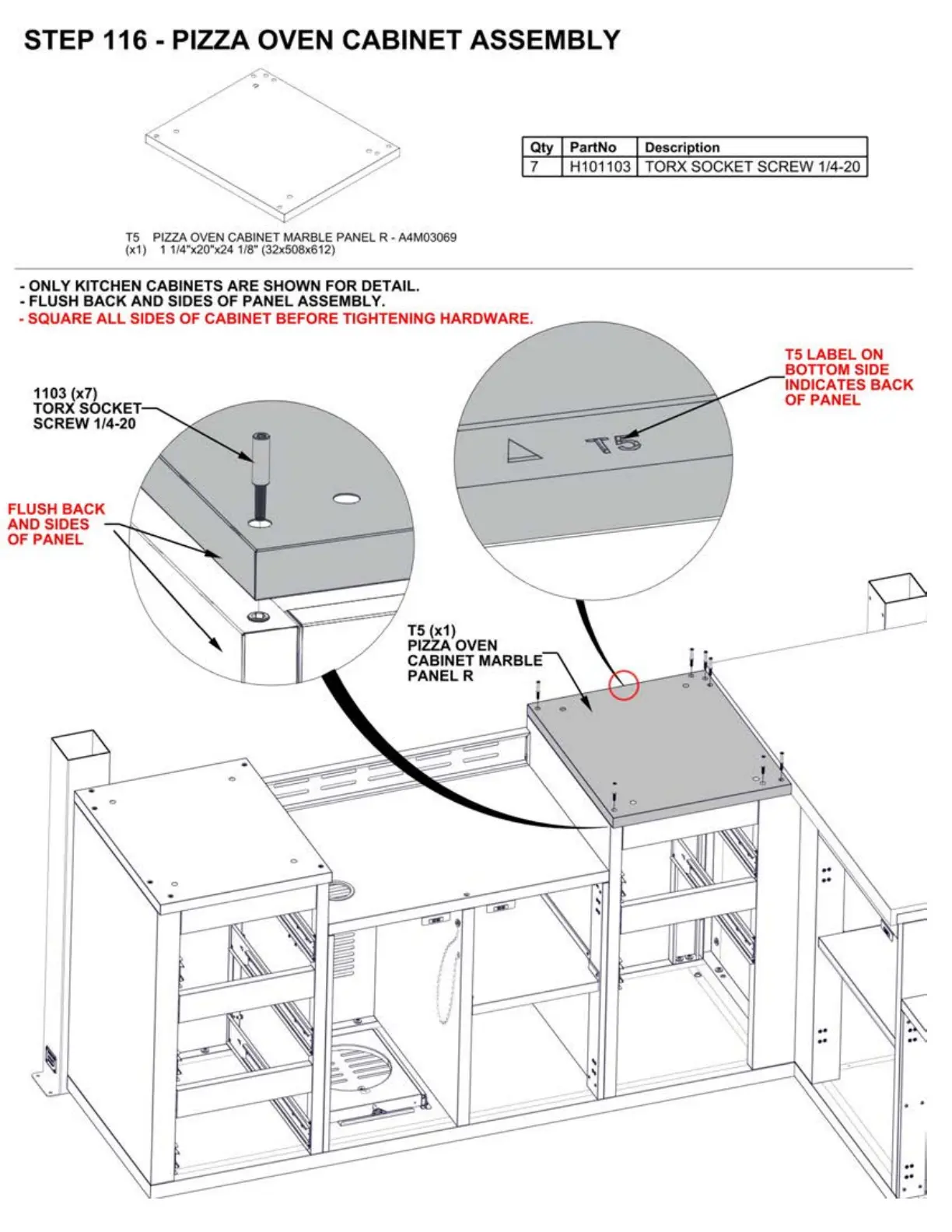

STEP 116 - PIZZA OVEN CABINET ASSEMBLY
Qty
PartNo Description
7 H101103 TORX SOCKET SCREW 1/4-20
T5 PIZZA OVEN CABINET MARBLE PANEL R - A4M03069
(x1)
11
/4"x20"x24 1/8" (32x508x612)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
- FLUSH
BACK
AND SIDES
OF
PANEL ASSEMBLY.
- SQUARE
ALL
SIDES OF CABINET BEFORE TIGHTENING HARDWARE.
1103 (x7)
TORX SOCKET
SCREW 1/4-20
FLUSH
BACK
AND SIDES
OF PANEL
~~\===;
TS
(x1)
PIZZA OVEN
CABINET MARBLE
PANEL R
TS
LABEL
ON
BOTTOM SIDE
INDICATES
BACK
OF
PANEL
To Next Page
