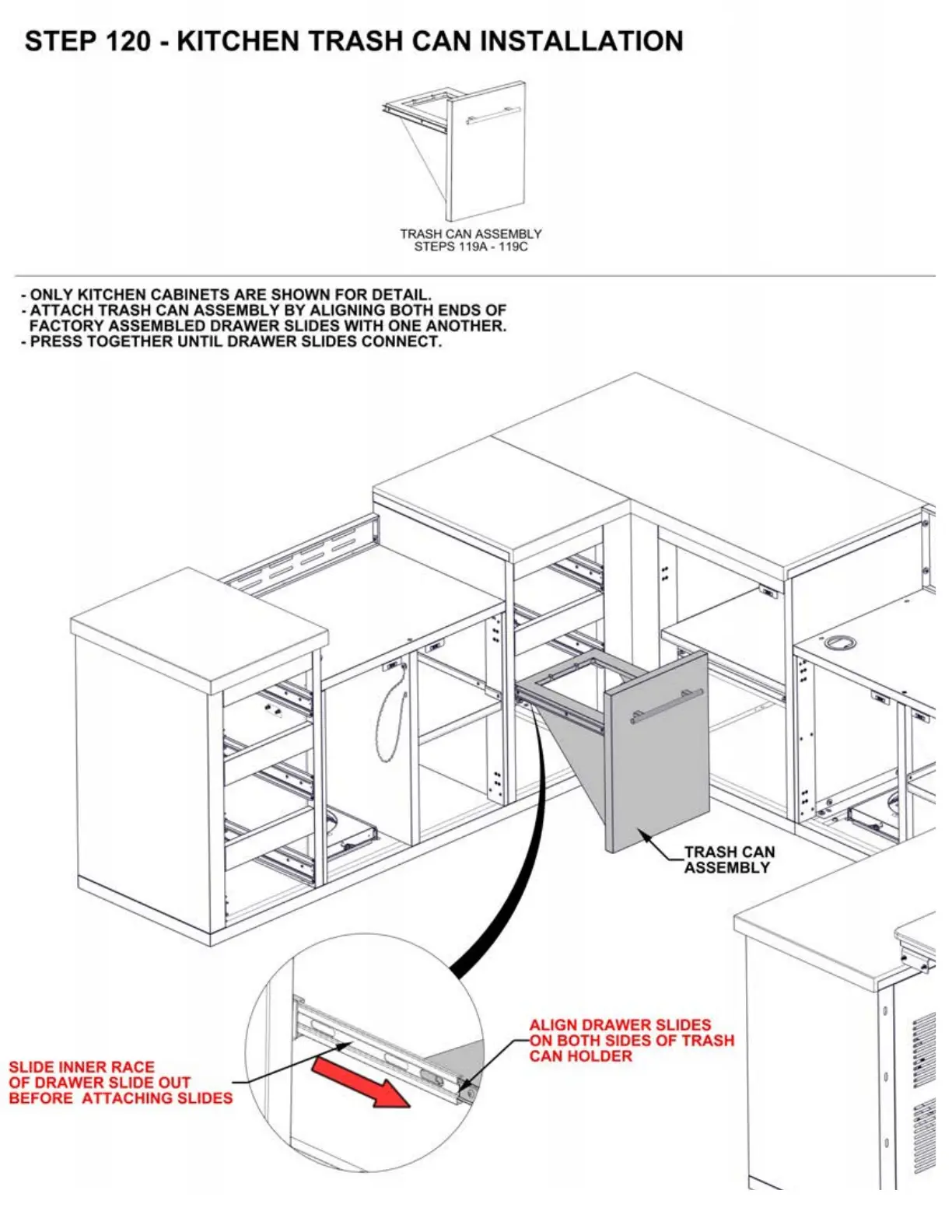

STEP 120 - KITCHEN TRASH CAN INSTALLATION
TRASH CAN ASSEMBLY
STEPS
11 9A-119C
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
-ATTACH TRASH CAN ASSEMBLY BY ALIGNING BOTH ENDS OF
FACTORY ASSEMBLED DRAWER SLIDES WITH ONE ANOTHER.
- PRESS TOGETHER UNTIL DRAWER SLIDES CONNECT.
SLIDE INNER RACE
OF DRAWER SLIDE OUT
BEFORE ATTACHING SLIDES
TRASH CAN
ASSEMBLY
ALIGN DRAWER SLIDES
ON BOTH SIDES OF TRASH
CAN HOLDER
