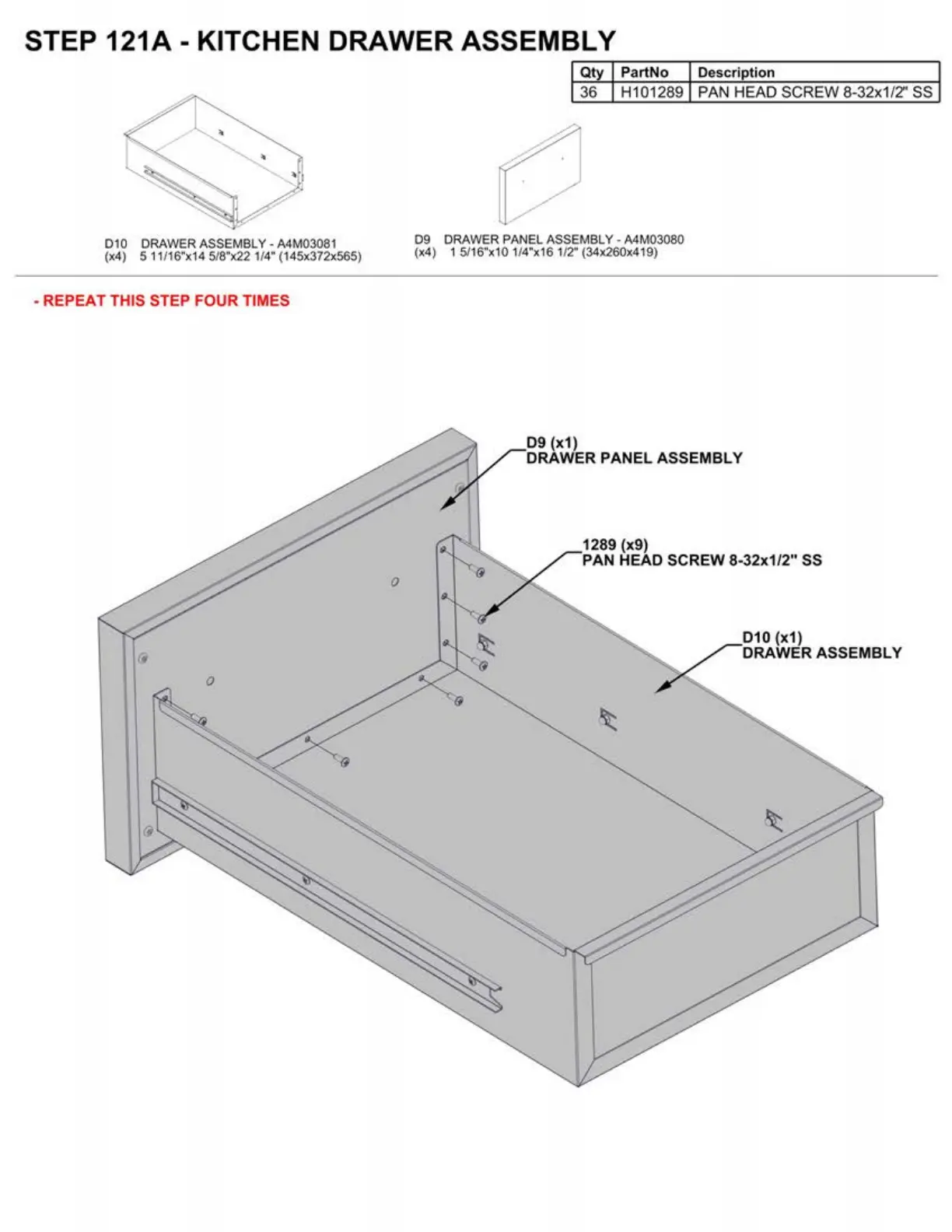

STEP 121A - KITCHEN DRAWER ASSEMBLY
D1 0 DRAWER ASSEMBLY - A4M03081
(x4) 5
11 /16"x14 5/8"x22 1/4" ( 14 5x372x565)
• REPEAT THIS STEP FOUR TIMES
Qty PartNo Description
36 H101289 PAN HEAD SCREW 8-32x1/ 2" SS
D9 DRAWER PANEL ASSEMBLY - A4M03080
(x4) 1 5/16"x10 1/4"x16 1/2" (34x260x
41 9)
D9 (x1)
DRAWER PANEL ASSEMBLY
1289 (x9)
PAN HEAD SCREW 8-32x1/2" SS
D10 (x1)
DRAWER ASSEMBLY
