Backyard Discovery FUSION FIRE - Page 168

168

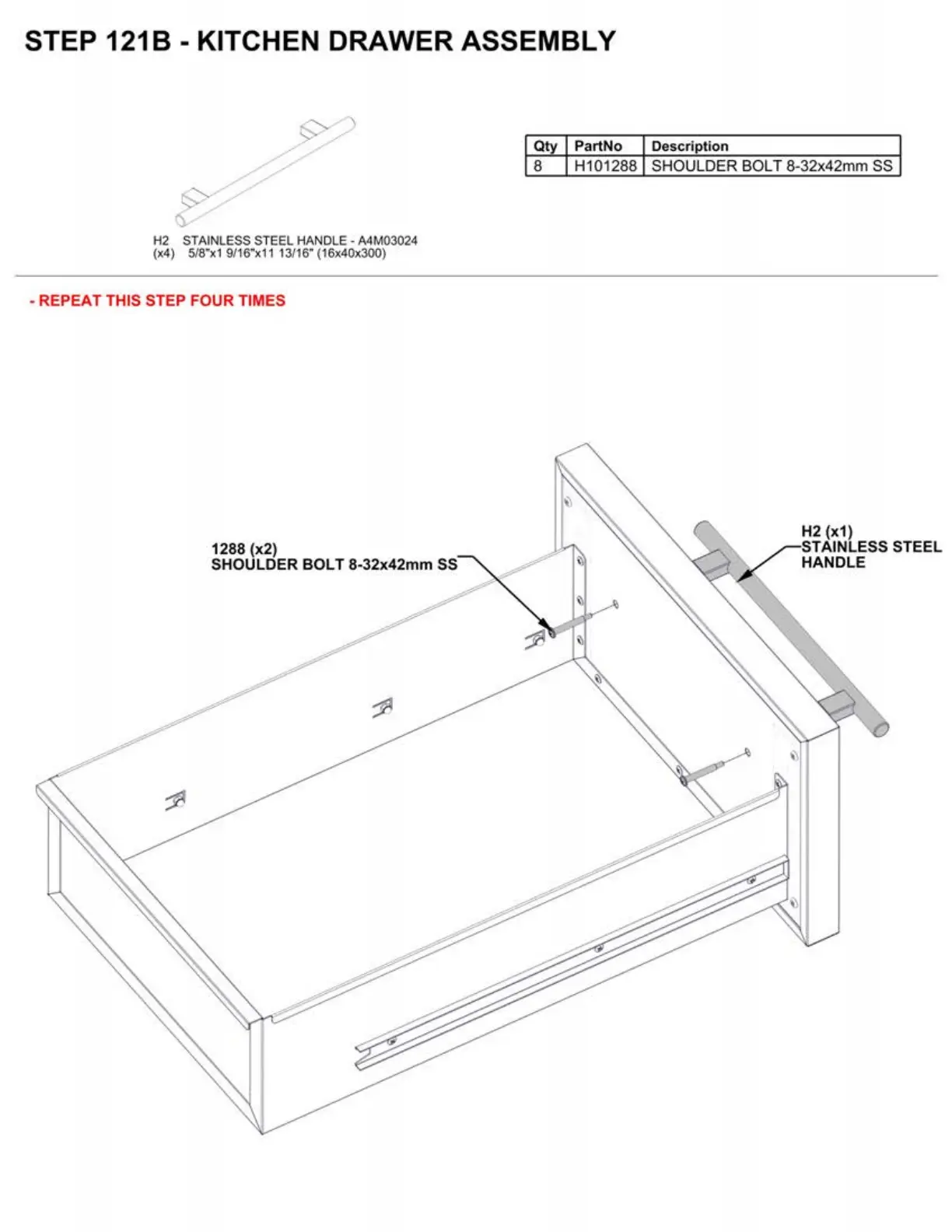

STEP 121 B - KITCHEN DRAWER ASSEMBLY
H2 STAINLESS STEEL HANDLE - A4M03024
(x4) 5/8"x1 9/16"x
11 13/16" (16x40x300)
• REPEAT THIS STEP FOUR TIMES
1288 (x2)
SHOULDER BOLT 8-32x42mm SS
Qty PartNo Description
8 H101288 SHOULDER BOLT 8-32x42mm SS
H2
(x1)
STAINLESS STEEL
HANDLE
