169

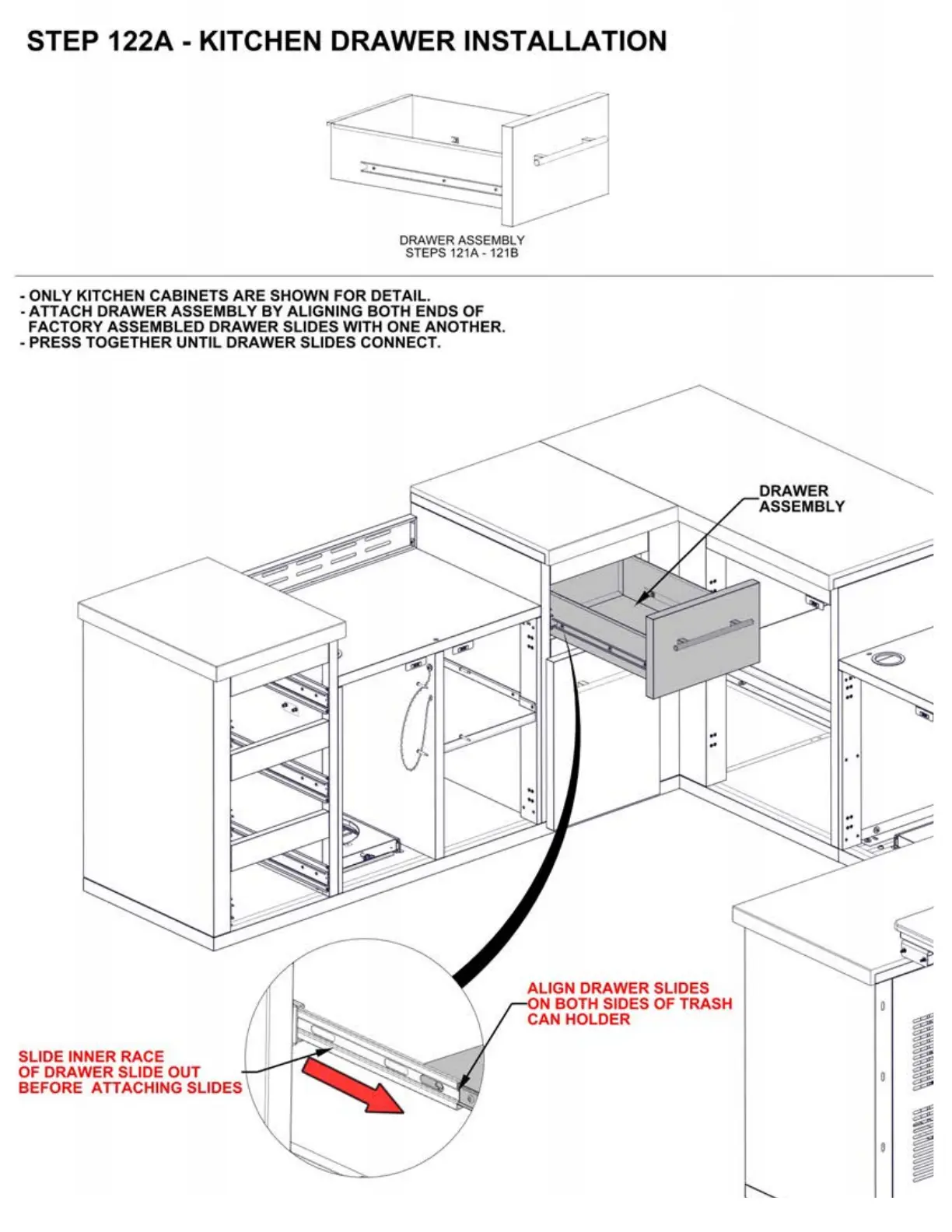

STEP 122A - KITCHEN DRAWER INSTALLATION
DR AW ER ASSEMBLY
STEPS 1
21A - 121B
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
• ATTACH DRAWER ASSEMBLY
BY ALIGNING BOTH ENDS OF
FACTORY ASSEMBLED DRAWER SLIDES WITH ONE ANOTHER.
- PRESS TOGETHER UNTIL DRAWER SLIDES CONNECT.
SLIDE INNER RACE
OF DRAWER SLIDE OUT
BEFORE ATTACHING SLIDES
ALIGN DRAWER SLIDES
ON BOTH SIDES OF TRASH
CAN HOLDER
