Backyard Discovery FUSION FIRE - Page 171

171

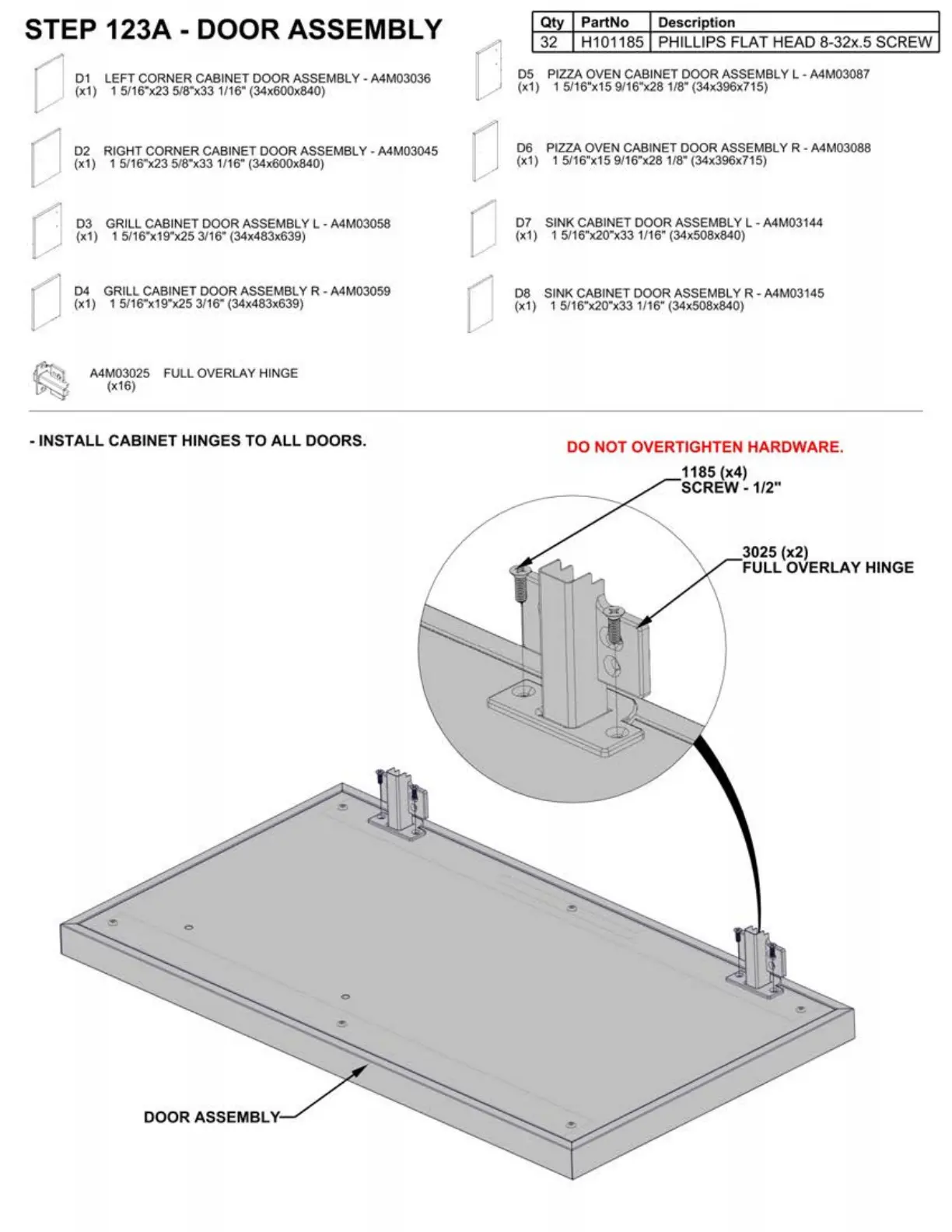

STEP 123A - DOOR ASSEMBLY
0
D1
LEFT CORNER CABINET DOOR ASSEMBLY
-
A4M03036
(x1) 1
5/16"x23 5/8"x33 1
/1
6" (34x600x840)
(1
D2
RIGHT CORNER CABINET DOOR ASSEMBLY
-
A4M03045
L)
(x1)
1 5/16"x23 5/8"x33 1/16" (34x600x840)
(1
D3
GRILL CABINET DOOR ASSEMBLY L
-
A4M03058
V
(x1) 1 5/16"x19"x25 3/16" (34x483x639)
(1
D4 GRILL CABINET DOOR ASSEMBLY R
-
A4M03059
V
(x1) 1 5/16"x19"x25 3/16" (34x483x639)
A4M03025 FULL OVERLAY HINGE
(x16)
- INSTALL CABINET HINGES TO ALL DOORS.
DOOR ASSEMBLY
0
0
0
0
Qty PartNo Description
32
H101185 PHILLIPS FLAT HEAD 8-32x.5 SCREW
DS
PIZZA OVEN CABINET DOOR ASSEMBLY L
-
A4M03087
(x1)
15
/
16"x159
/16"x28 1/8" (34x396x715)
D6 PIZZA OVEN CABINET DOOR ASSEMBLY R
-
A4M03088
(x1)
15
/
16"x159
/16"x28 1/8" (34x396x715)
D7 SINK CABINET DOOR ASSEMBLY L
-
A4M03144
(x1) 1
5/16"x20"x33 1/16" (34x508x840)
D8 SINK CABINET DOOR ASSEMBLY R -
A4M03145
(x1)
15/
16"x20"x331/16" (34x508x840)
DO NOT OVERTIGHTEN HARDWARE.
1185 (x4)
SCREW-1/2"
3025 (x2)
FULL OVERLAY HINGE
