172

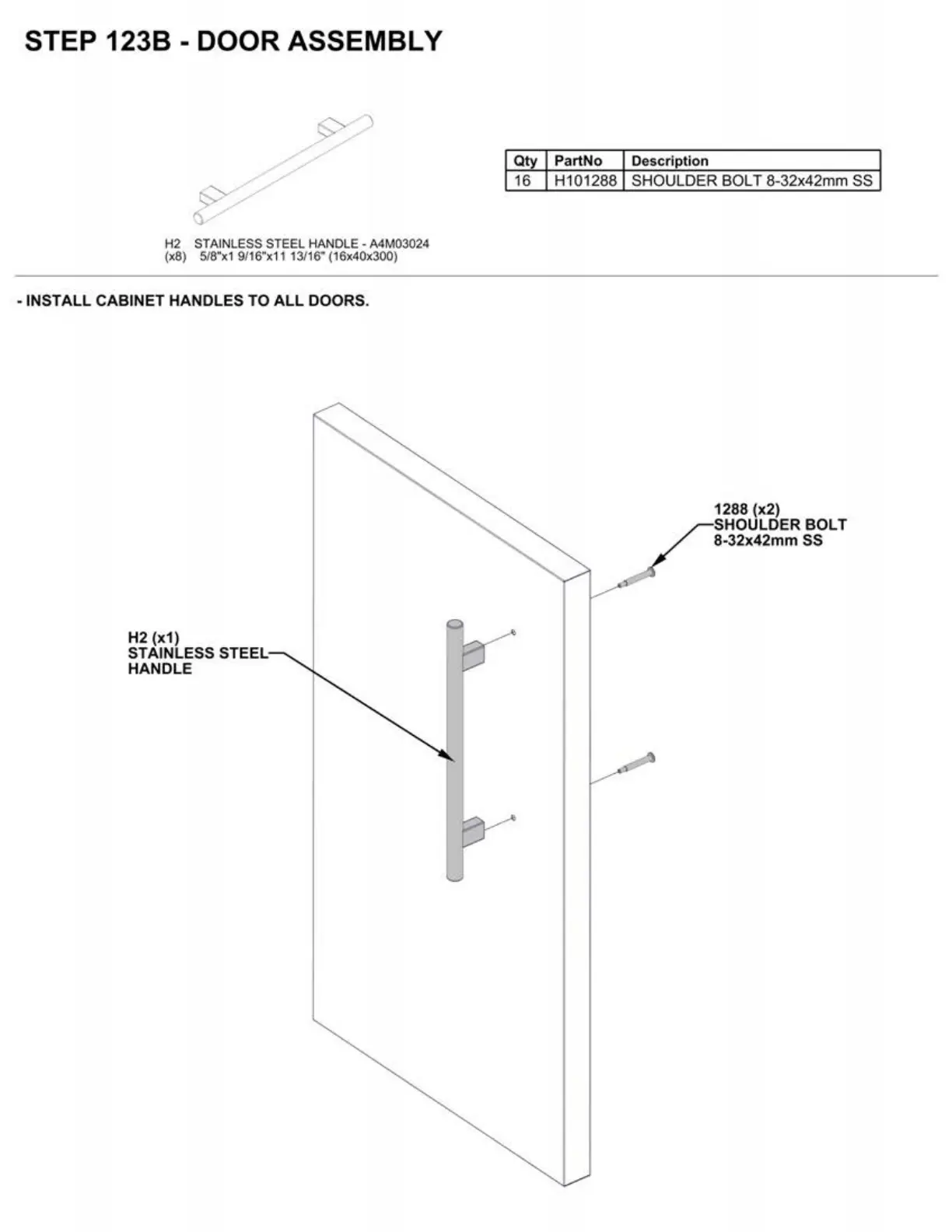

STEP 1238 - DOOR ASSEMBLY
H2 STAINLESS STEEL HANDLE -A4M0 3024
(x8) 5/8
"x1 9/16"x 11 13/16" (16x40x300)
- INSTALL CABINET HANDLES TO ALL DOORS.
H2 (x1)
STAINLESS STEEL
HANDLE
Qty PartNo Description
16 H101288 SHOULDER BOLT 8-32x42mm SS
1288 (x2)
SHOULDER BOLT
8-32x42mm SS
