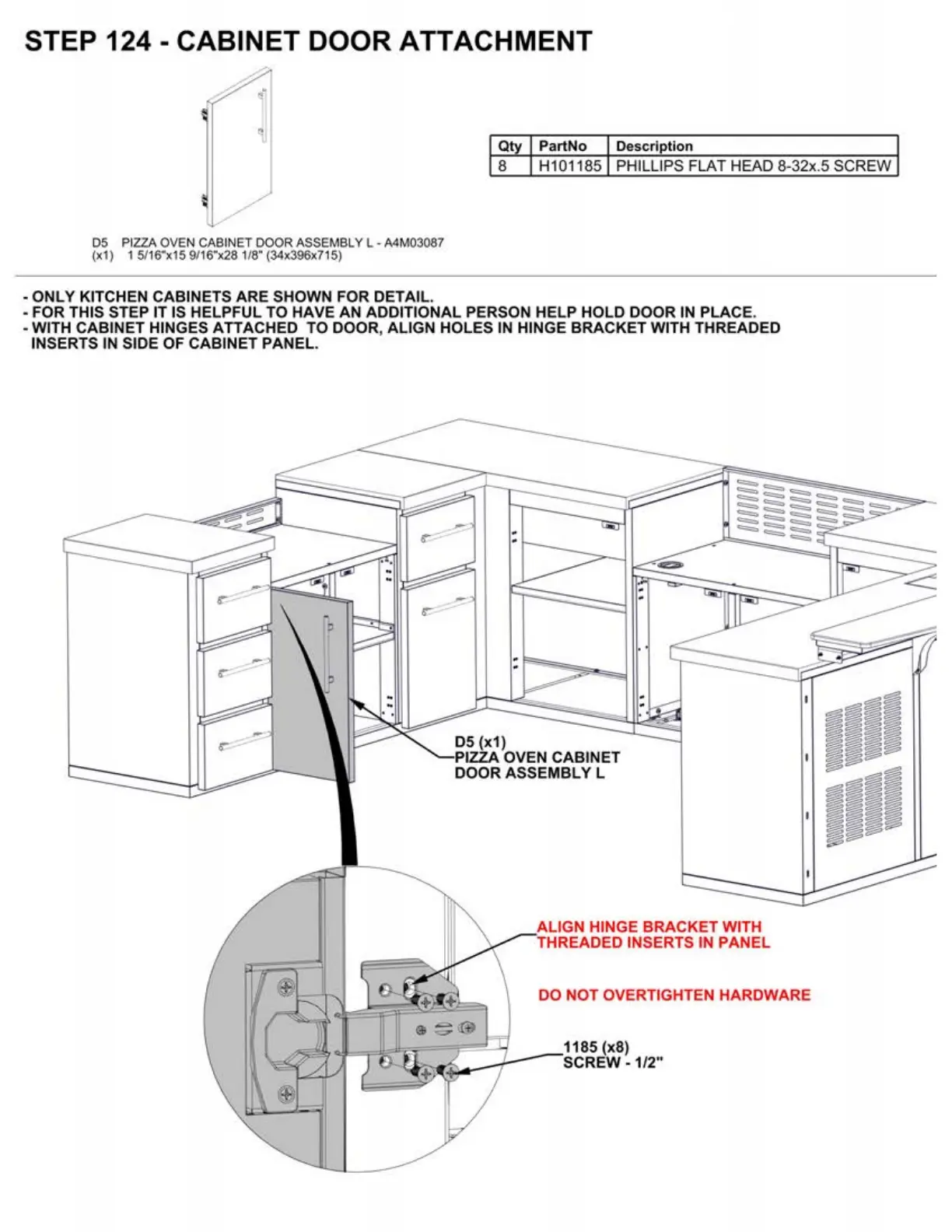

STEP 124 - CABINET DOOR ATTACHMENT
D5
PI
ZZA OVEN CABINET DOOR ASSEMBLY L - A4M03087
(x1) 1 5/16"x15 9/16"x28 1/8" (34x396x715)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
Qty PartNo Description
8
H1011
85 PHILLIPS FLAT HEAD 8-32x.5 SCREW
- FOR THIS STEP IT
IS
HELPFUL TO HAVE AN ADDITIONAL PERSON HELP HOLD DOOR IN PLACE.
-WITH
CABINET HINGES ATTACHED TO DOOR, ALIGN HOLES
IN
HINGE BRACKET WITH THREADED
INSERTS
IN
SIDE OF CABINET PANEL.
D5 (x1)
PIZZA OVEN CABINET
DOOR ASSEMBLY L
ALIGN HINGE BRACKET WITH
THREADED INSERTS
IN
PANEL
DO NOT OVERTIGHTEN HARDWARE
1185 (x8)
SCREW
-1/2"
