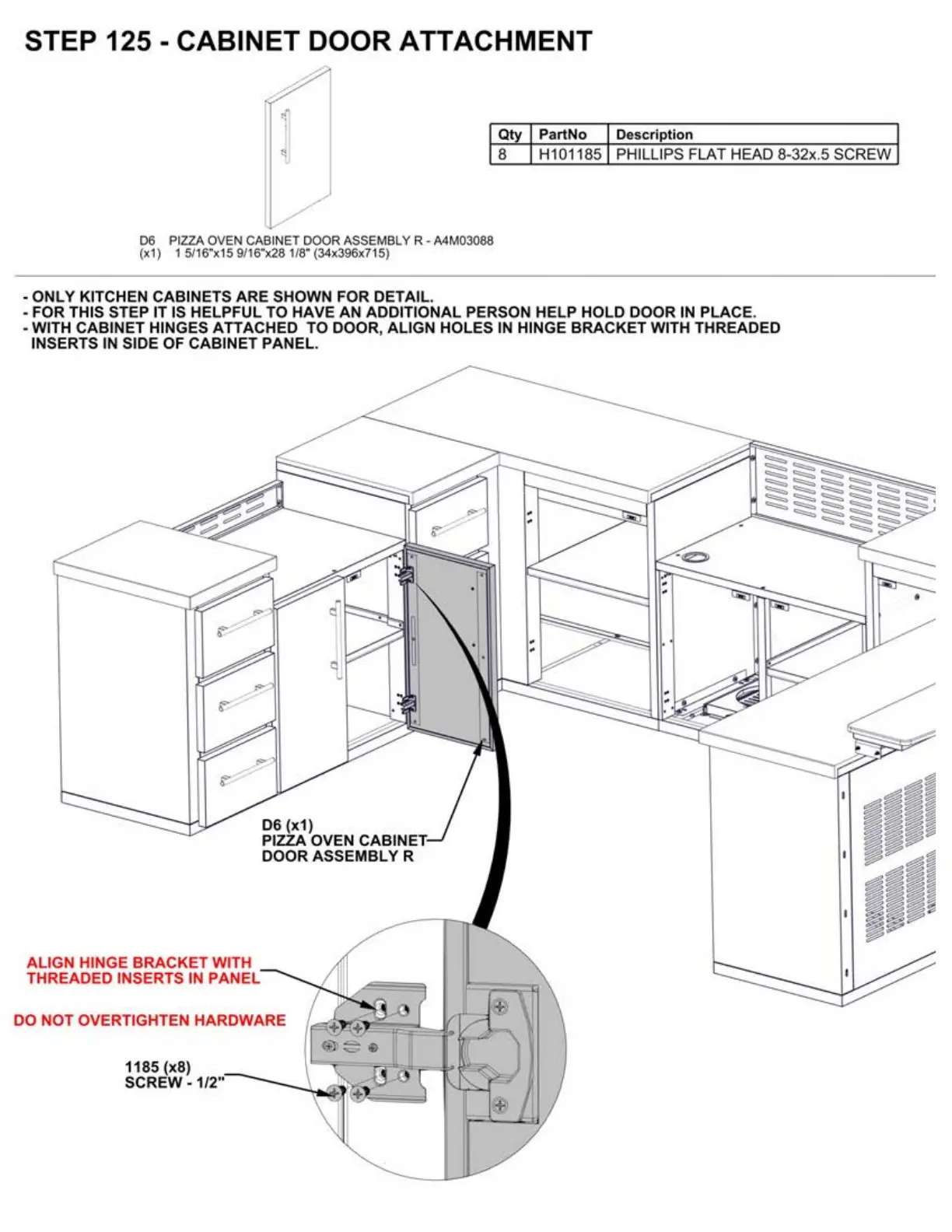

STEP 125 - CABINET DOOR ATTACHMENT
D6
PIZZA OVEN CABINET DOOR
ASS
EMBLY R - A4M03088
(x1)
15
/16"x159/16"x28 1/8" (34x396x715)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
Qty
PartNo Description
8 H101185 PHILLIPS FLAT HEAD 8-32x.5 SCREW
- FOR THIS STEP IT
IS
HELPFUL TO HAVE AN ADDITIONAL PERSON HELP HOLD DOOR IN PLACE.
-WITH
CABINET HINGES ATTACHED TO DOOR, ALIGN HOLES
IN
HINGE BRACKET WITH THREADED
INSERTS
IN
SIDE OF CABINET PANEL.
ALIGN HINGE BRACKET WITH
THREADED INSERTS
IN
PANEL
06
(x1)
PIZZA OVEN CABINET
DOOR ASSEMBLY R
DO
NOT OVERTIGHTEN HARDWARE
1185 (x8)
SCREW-1/2
"
To Next Page
