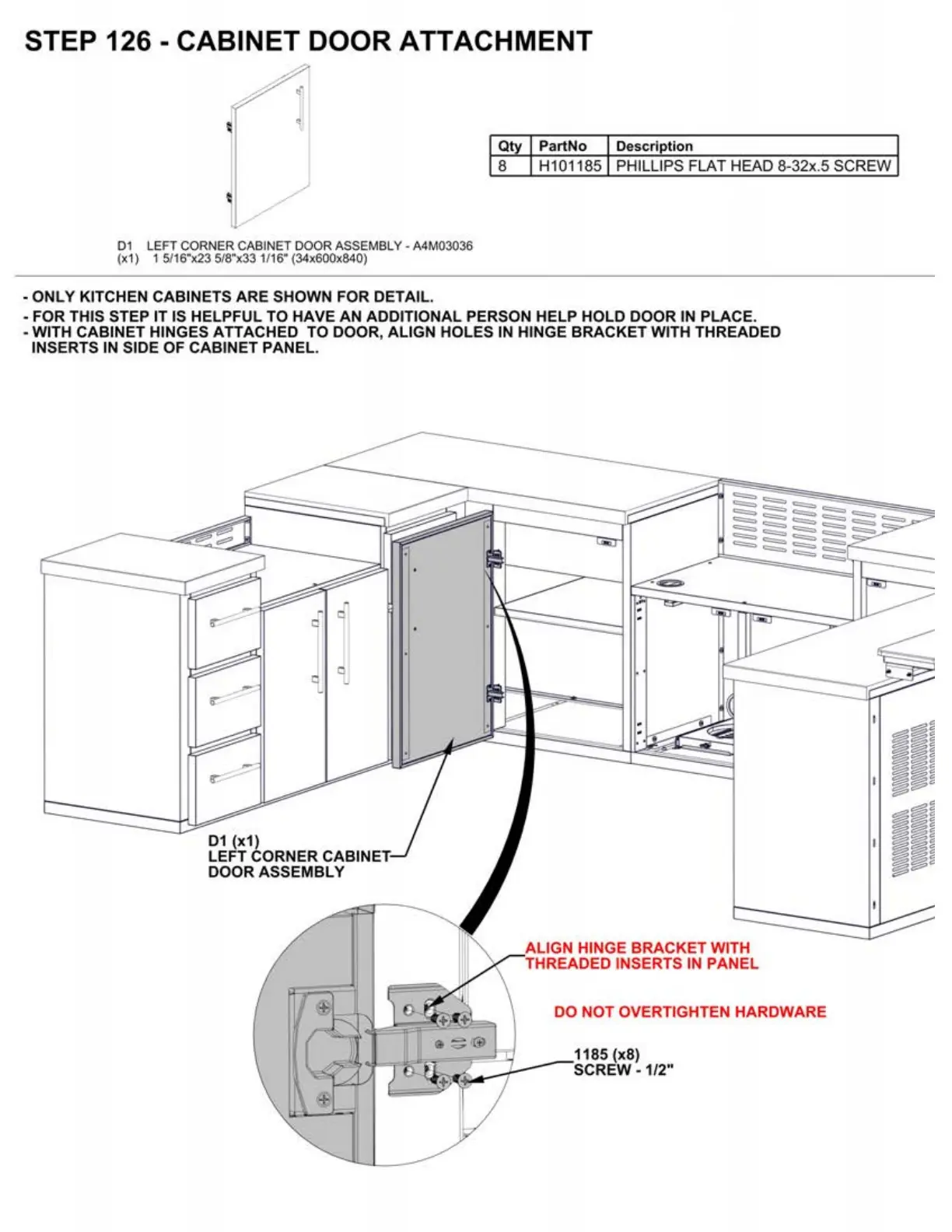

STEP 126 - CABINET DOOR ATTACHMENT
01
LEFT CORNER CABINET DOOR ASSEMBLY - A4M03036
(x1) 1 5/16"x23 5/8"x33 1/16" (34x600x840)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
Qty PartNo Description
8
H1011
85 PHILLIPS FLAT HEAD 8-32
x.
5 SCREW
- FOR THIS STEP IT
IS
HELPFUL
TO
HAVE AN ADDITIONAL PERSON HELP HOLD DOOR
IN
PLACE.
-WITH
CABINET HINGES ATTACHED TO DOOR, ALIGN HOLES IN HINGE BRACKET WITH THREADED
INSERTS IN SIDE OF CABINET PANEL.
D1
(x1)
LEFT CORNER CABINET
DOOR ASSEMBLY
==
ALIGN HINGE BRACKET WITH
THREADED INSERTS IN PANEL
DO NOT OVERTIGHTEN HARDWARE
1185 (x8)
SCREW
-1/2"
