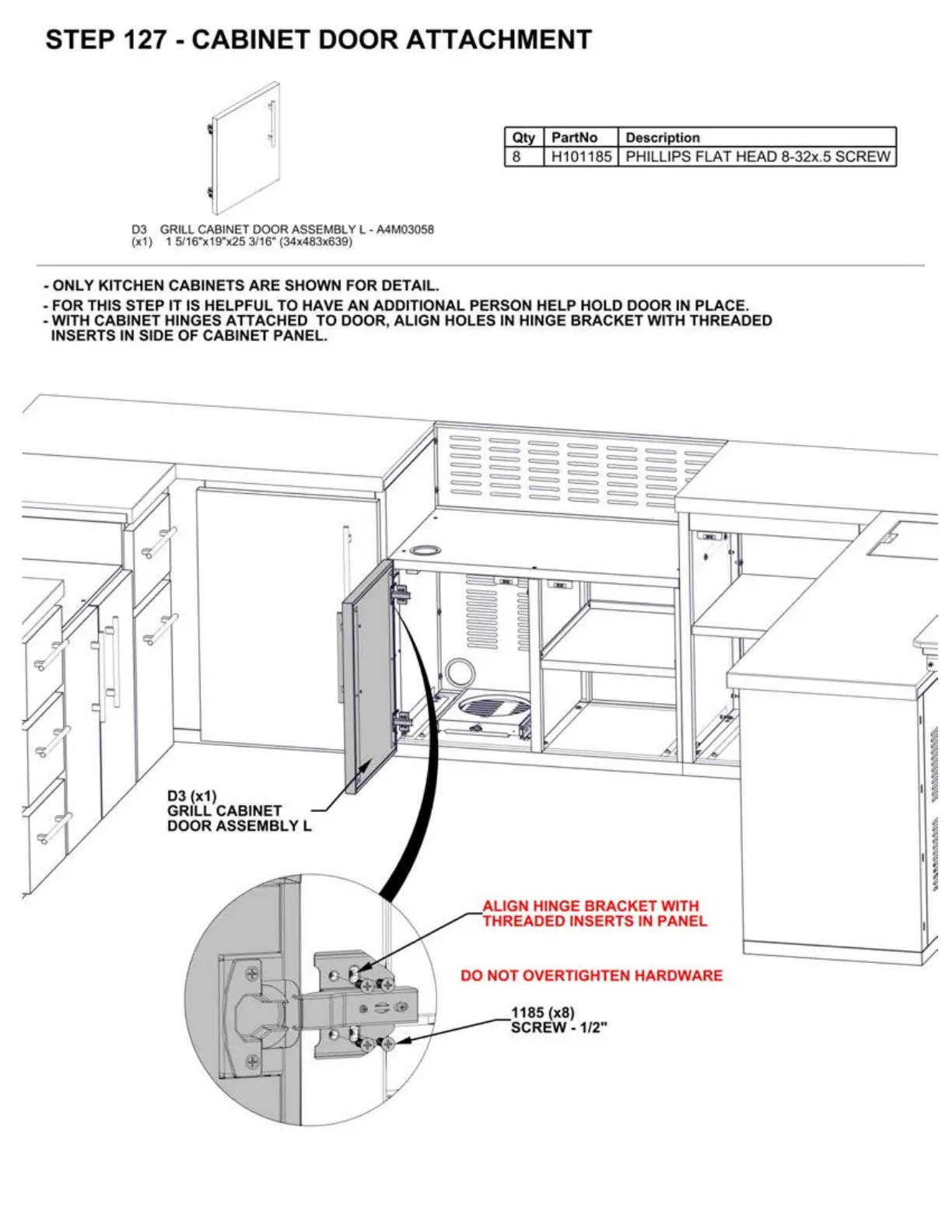

STEP 127 - CABINET DOOR ATTACHMENT
D3 GRILL CABINET DOOR ASSEMBLY L - A4M03058
(x1
) 1 5/16"x19"x25 3/16" (34x483x639)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
Qty PartNo Description
8
H101
18
5 PHILLIPS FLAT HE
AD
8-32x.5 SCREW
- FOR THIS STEP IT
IS
HELPFUL TO HAVE AN ADDITIONAL PERSON HELP HOLD DOOR IN PLACE.
-WITH
CABINET HINGES ATTACHED TO DOOR, ALIGN HOLES
IN
HINGE BRACKET WITH THREADED
INSERTS
IN
SIDE OF CABINET PANEL.
D3 (x1)
GRILL CABINET
DOOR ASSEMBLY L
H
ALIGN HINGE BRACKET WITH
THREADED INSERTS
IN
PANEL
DO NOT OVERTIGHTEN HARDWARE
1185 (x8)
SCREW-1/2"
To Next Page
