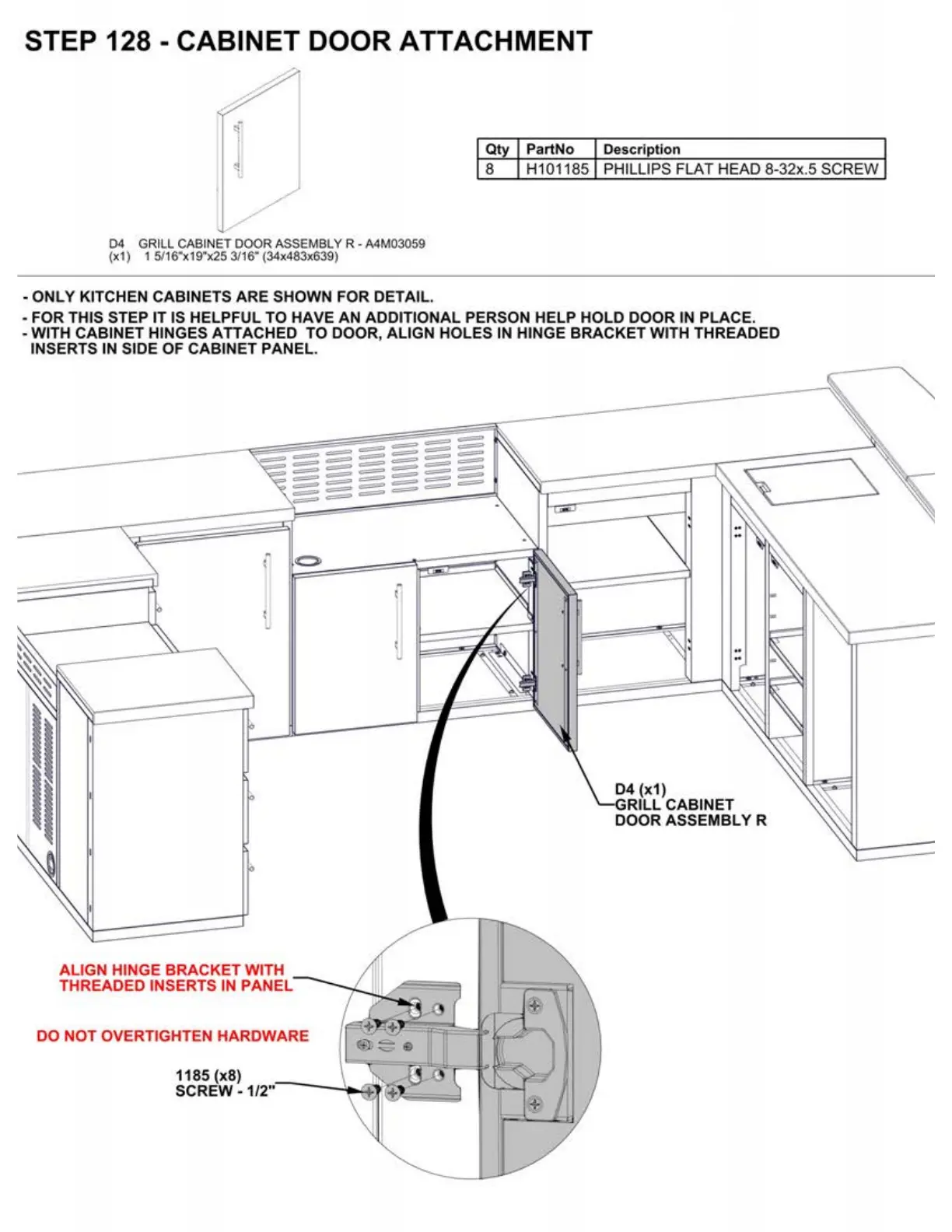

STEP 128 - CABINET DOOR ATTACHMENT
D4 GRILL CABINET DOOR ASSEMBLY R - A4M03059
(x1
) 1 5/16"x19"x253/16" (34x483x639)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
Qty PartNo Description
8 H101185 PHILLIPS FLAT HEAD 8-32x.5 SCREW
- FOR THIS STEP IT IS HELPFUL TO HAVE
AN
ADDITIONAL PERSON HELP HOLD DOOR
IN
PLACE.
-WITH
CABINET HINGES ATTACHED TO DOOR, ALIGN HOLES
IN
HINGE BRACKET WITH THREADED
INSERTS
IN
SIDE OF CABINET PANEL.
ALIGN HINGE BRACKET WITH
THREADED INSERTS
IN
PANEL
DO NOT OVERTIGHTEN HARDWARE
D4 (x1)
GRILL CABINET
DOOR ASSEMBLY R
To Next Page
