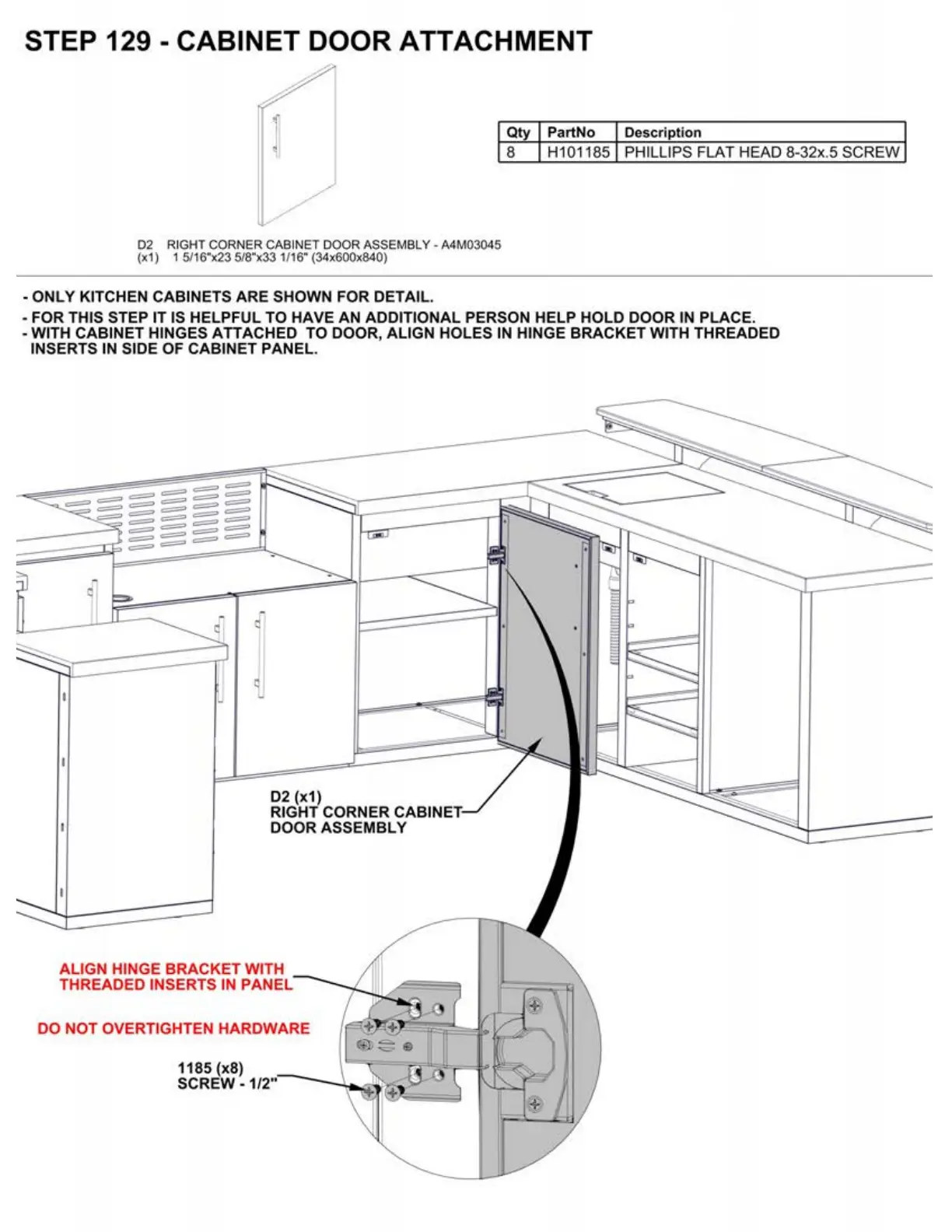

STEP 129 - CABINET DOOR ATTACHMENT
D2 RIGHT CORNER CABINET DOOR ASSEMBLY - A4M03045
(x1) 1 5/16"x23 5/8"x33 1 /16" (34x600x840)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
Qty PartNo Description
8 H101185 PHILLIPS FLAT HEAD 8-32x.5 SCREW
- FOR THIS STEP IT IS HELPFUL TO HAVE
AN
ADDITIONAL PERSON HELP HOLD DOOR
IN
PLACE.
-WITH
CABINET HINGES ATTACHED TO DOOR, ALIGN HOLES
IN
HINGE BRACKET WITH THREADED
INSERTS
IN
SIDE OF CABINET PANEL.
==
====
======
=====
=====
====
====
~_,...,-==
D2
{x1)
RIGHT CORNER CABINET
DOOR ASSEMBLY
ALIGN HINGE BRACKET WITH
THREADED INSERTS
IN
PANEL
DO
NOT OVERTIGHTEN HARDWARE
1185 {x8)
SCREW-1/2"
