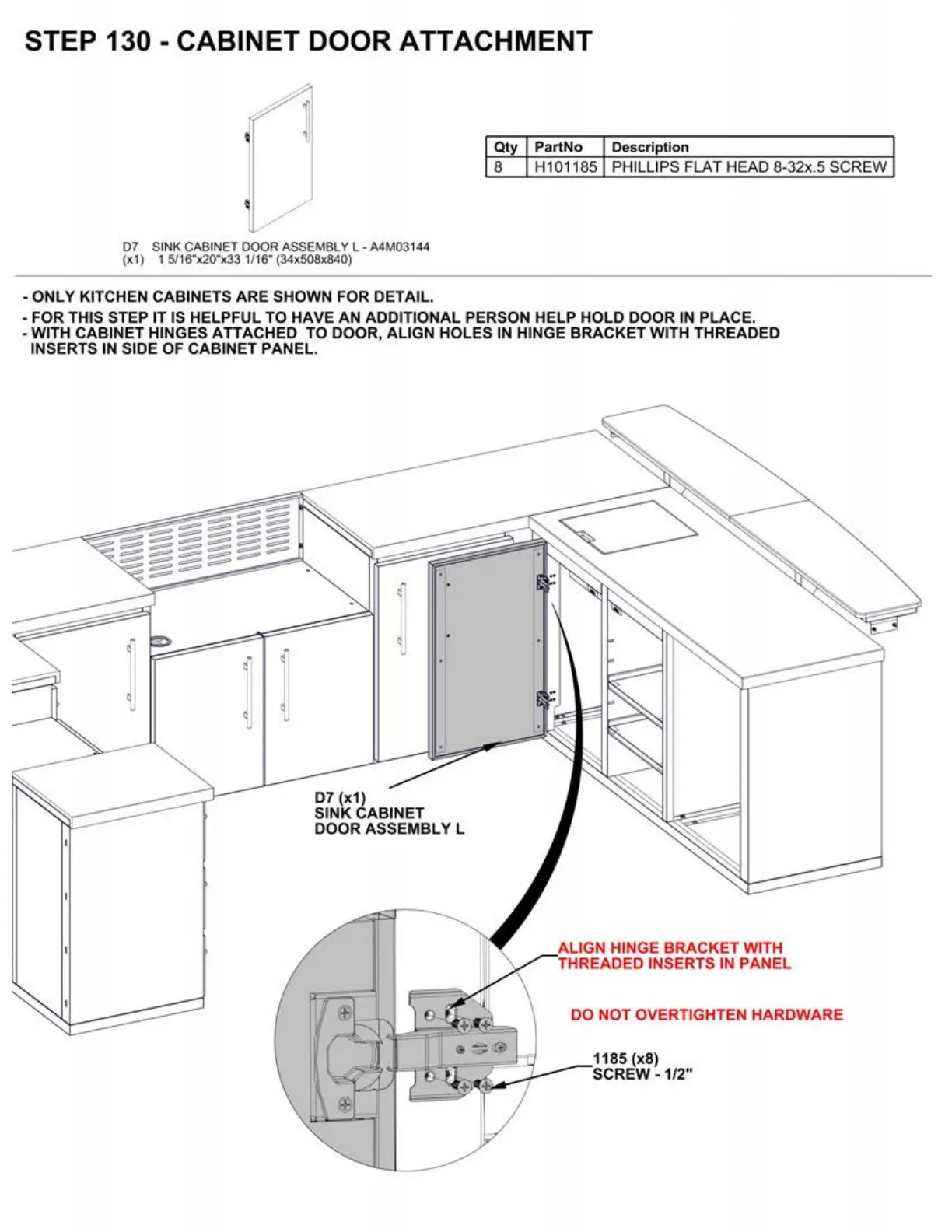

STEP 130 - CABINET DOOR ATTACHMENT
07
SINK
CA
BINET DOOR ASSEMBLY L - A4M03144
(x1) 1 5/16"x20"x33 1 /16" (34x508x840)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
Qty PartNo Description
8 H101185 PHILLIPS FLAT HEAD 8-32x.5 SCREW
- FOR THIS STEP IT IS HELPFUL TO HAVE AN ADDITIONAL PERSON HELP HOLD DOOR
IN
PLACE.
-WITH
CABINET HINGES ATTACHED TO DOOR, ALIGN HOLES
IN
HINGE BRACKET WITH THREADED
INSERTS
IN
SIDE OF CABINET PANEL.
D7 (x1)
SINK CABINET
DOOR ASSEMBLY L
ALIGN HINGE BRACKET WITH
THREADED INSERTS IN PANEL
DO NOT OVERTIGHTEN HARDWARE
1185 (x8)
SCREW
-1/2"
To Next Page
