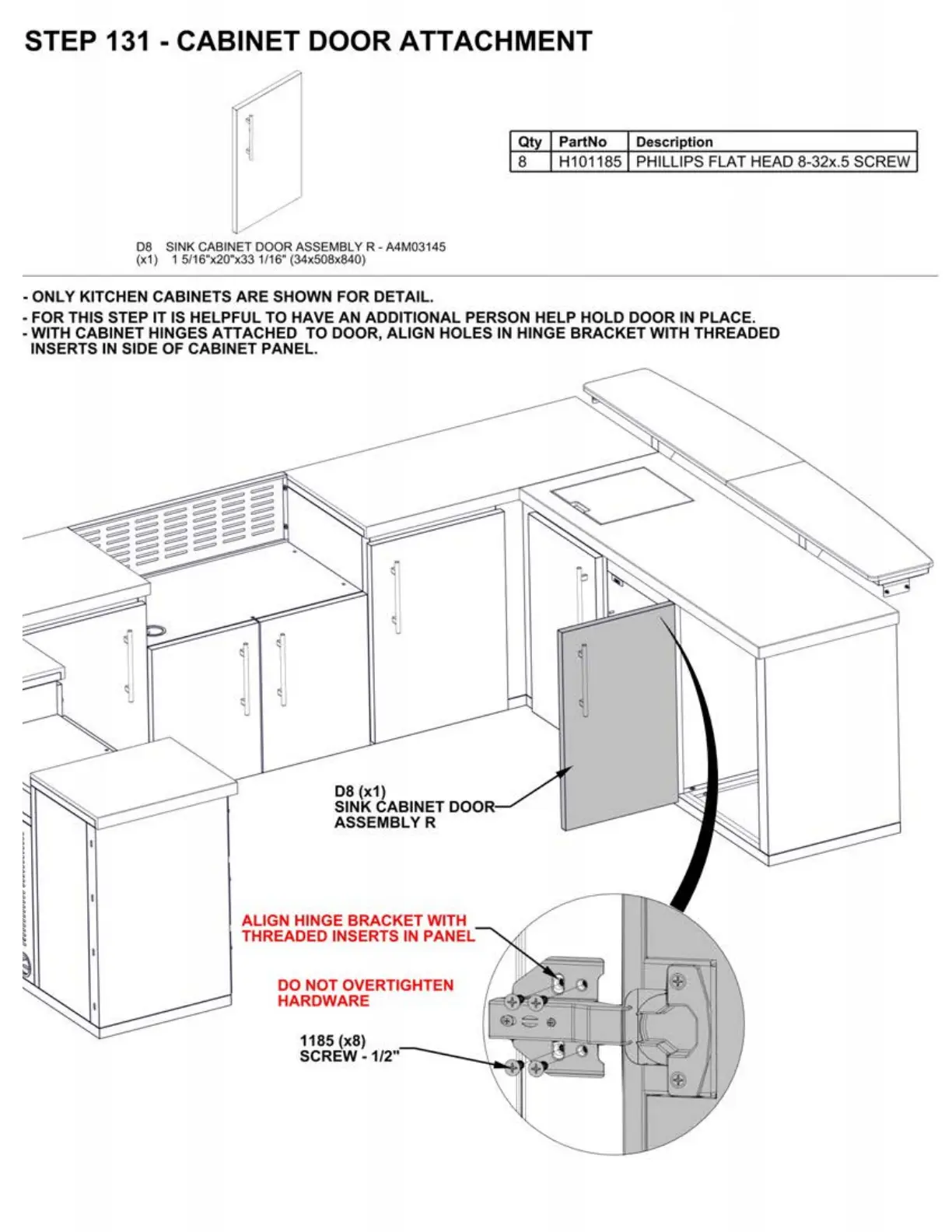

STEP
131
- CABINET DOOR ATTACHMENT
D8 SINK CABINET DOOR ASSEMBLY R - A4M03145
(x1) 1 5/16"x20"x33 1 /16" (34x508x8
40
)
- ONLY KITCHEN CABINETS ARE SHOWN FOR DETAIL.
Qty
PartNo
Description
8 H101185 PHILLIPS FLAT HEAD 8-3
2x
.5 SCREW
- FOR THIS STEP IT IS HELPFUL TO HAVE
AN
ADDITIONAL PERSON HELP HOLD DOOR
IN
PLACE.
-WITH
CABINET HINGES ATTACHED TO DOOR, ALIGN HOLES
IN
HINGE BRACKET WITH THREADED
INSERTS
IN
SIDE OF CABINET PANEL.
D8
(x1)
SINK CABINET DOOR
ASSEMBLY R
ALIGN HINGE BRACKET WITH
THREADED INSERTS
IN
PANEL
DO NOT OVERTIGHTEN
HARDWARE
1185 (x8)
SCREW-1/2"
To Next Page
