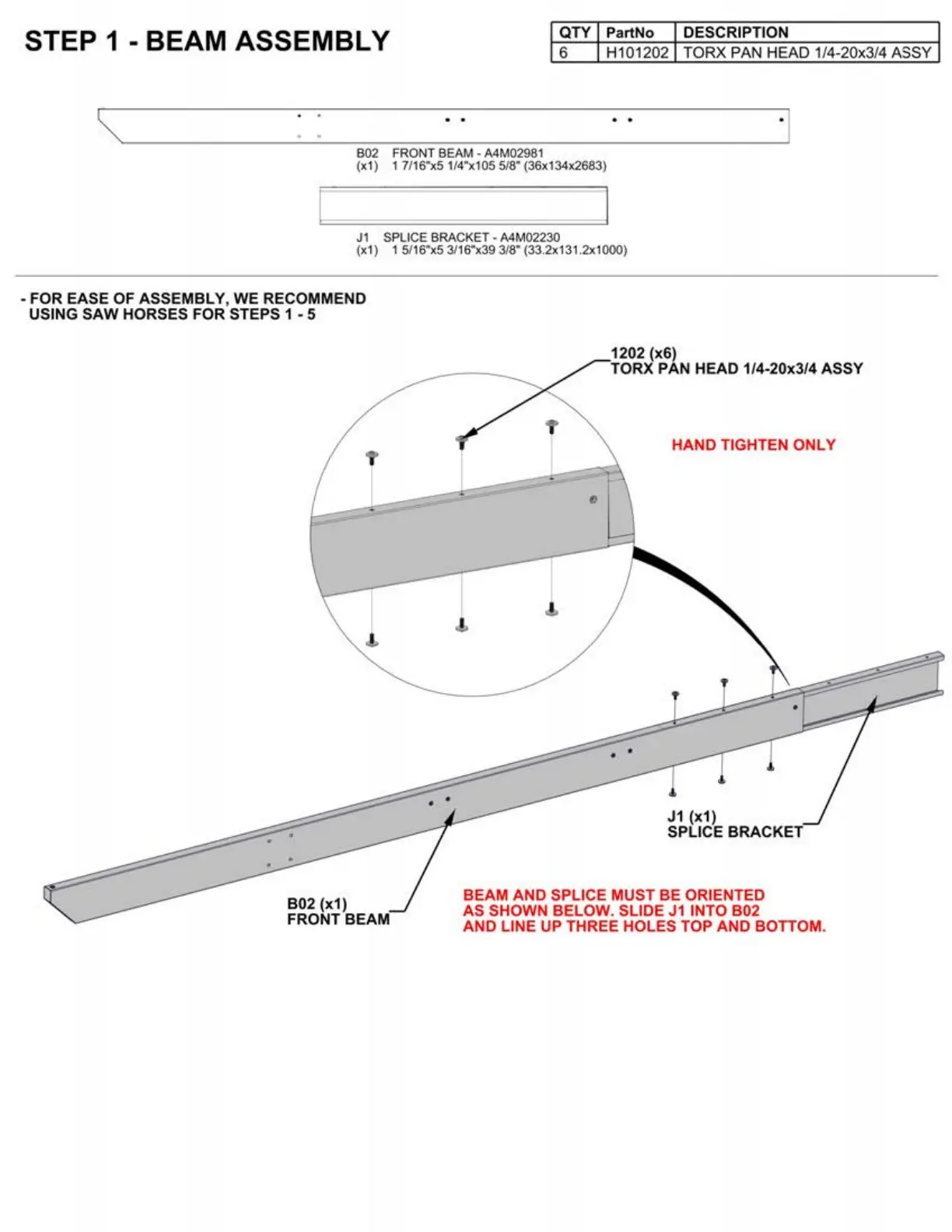

STEP 1 - BEAM ASSEMBLY
QTY PartNo DESCRIPTION
6 H101202 TORX
PAN HEAD 1/4-20x3/4 ASS Y
B02 FRONT BEAM - A4M02981
(x1) 1 7/16"x5 1/4"x
10 55 /8" (36x134x2683)
J1 SPLICE BRACKET - A4M02230
(x1) 1 5/16"
x53 /16"x39 3/ 8" (33.2x13 1. 2x1000)
- FOR EASE OF ASSEMBLY, WE RECOMMEND
USING SAW HORSES FOR STEPS 1 - 5
B02 (x1)
FRONT BEAM
1202 (x6)
TORX PAN HEAD 1/4-20x3/4 ASSY
HAND TIGHTEN ONLY
J1 (x1)
SPLICE BRACKET
BEAM AND SPLICE MUST BE ORIENTED
AS SHOWN BELOW. SLIDE
J1 INTO 802
AND LINE UP THREE HOLES TOP AND BOTTOM.
