Backyard Discovery FUSION FIRE - Page 20

20

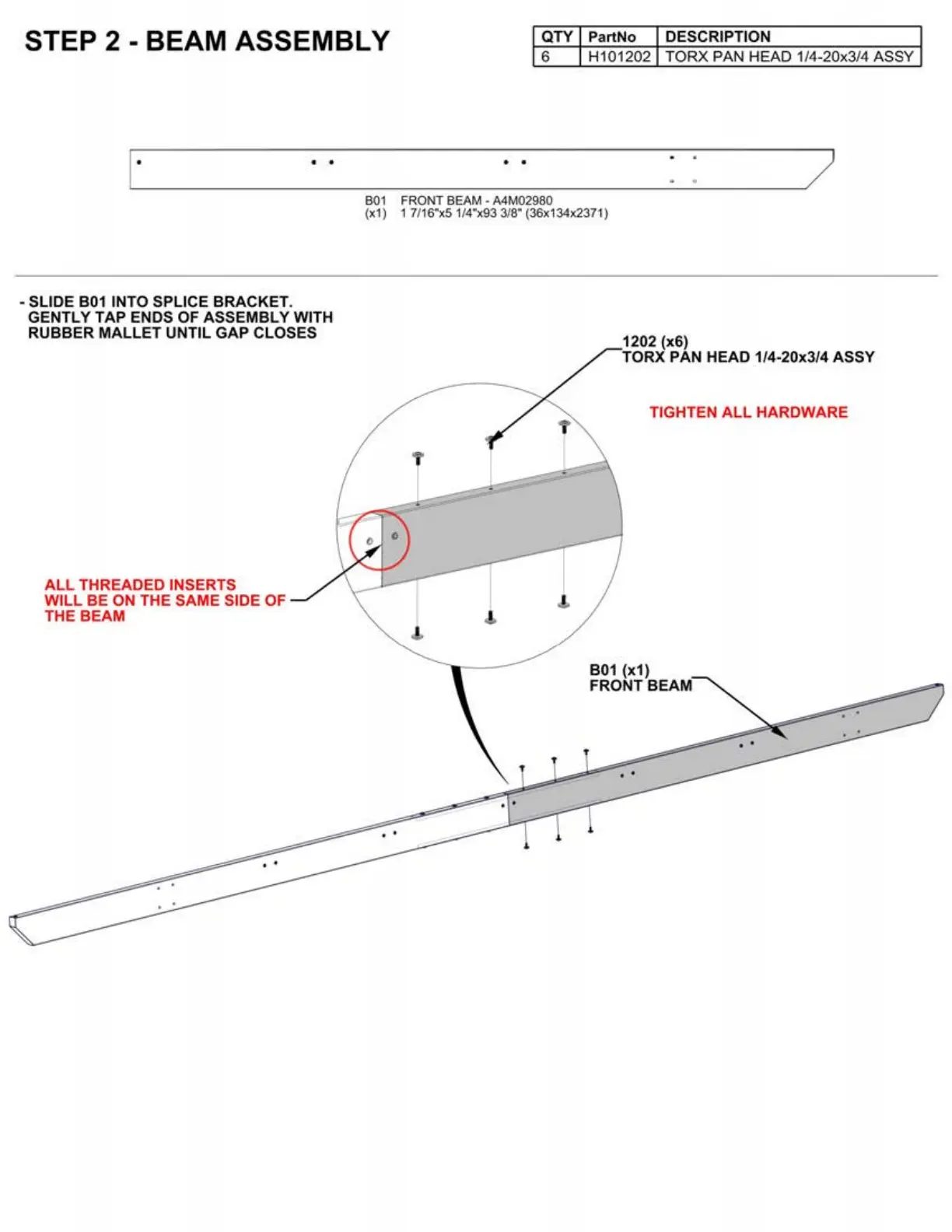

STEP 2 - BEAM ASSEMBLY
QTY PartNo DESCRIPTION
6 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
. .
• SLIDE B01 INTO SPLICE BRACKET.
GENTLY
TAP ENDS OF ASSEMBLY WITH
RUBBER
MALLET UNTIL GAP CLOSES
ALL THREADED INSERTS
WILL BE ON THE SAME SIDE OF
THE BEAM
. .
B0 1 FRONT BE AM - A4M02980
(x1) 1 7/16"x5 1/4"
x933 /8" (36x134x2371)
1202 (x6)
TORX PAN HEAD 1/4-20x3/4
ASSY
TIGHTEN ALL HARDWARE
B01 (x1)
FRONT BEAM
