Backyard Discovery FUSION FIRE - Page 22

22

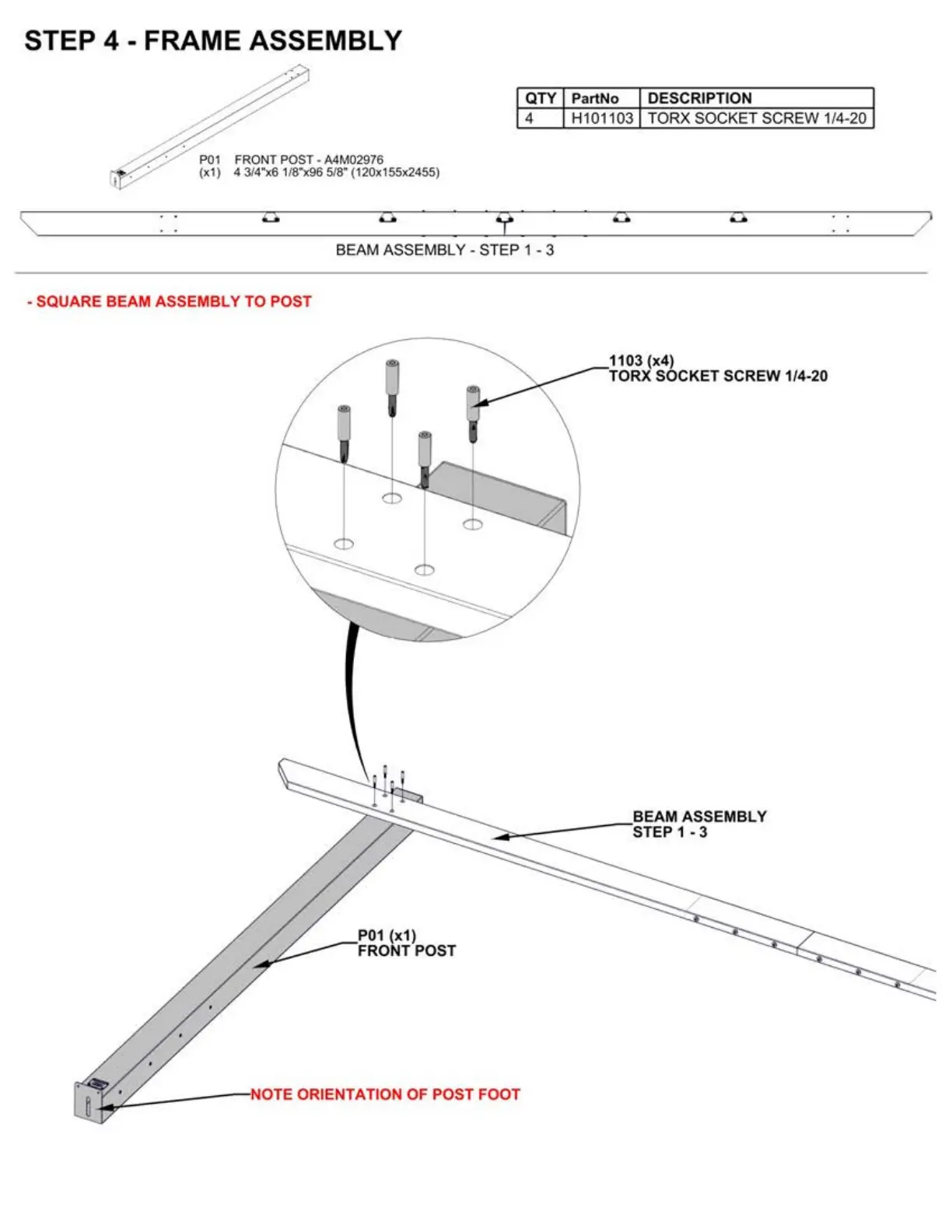

STEP 4 - FRAME ASSEMBLY
QTY PartNo DESCRIPTION
4 H101 103 TORX SOCKET SCREW 1/4-20
FR ONT POST - A4M02976
4 3/4"x6 1/8"x96 5/8" (120x155x2455)
\ ~ ________ n _____ n ___ __._? ____ n ____ n _____ ~ J
BEAM ASSEMBLY - STEP 1 - 3
- SQUARE BEAM ASSEMBLY TO POST
1103 (x4)
TORX SOCKET SCREW 1/4-20
