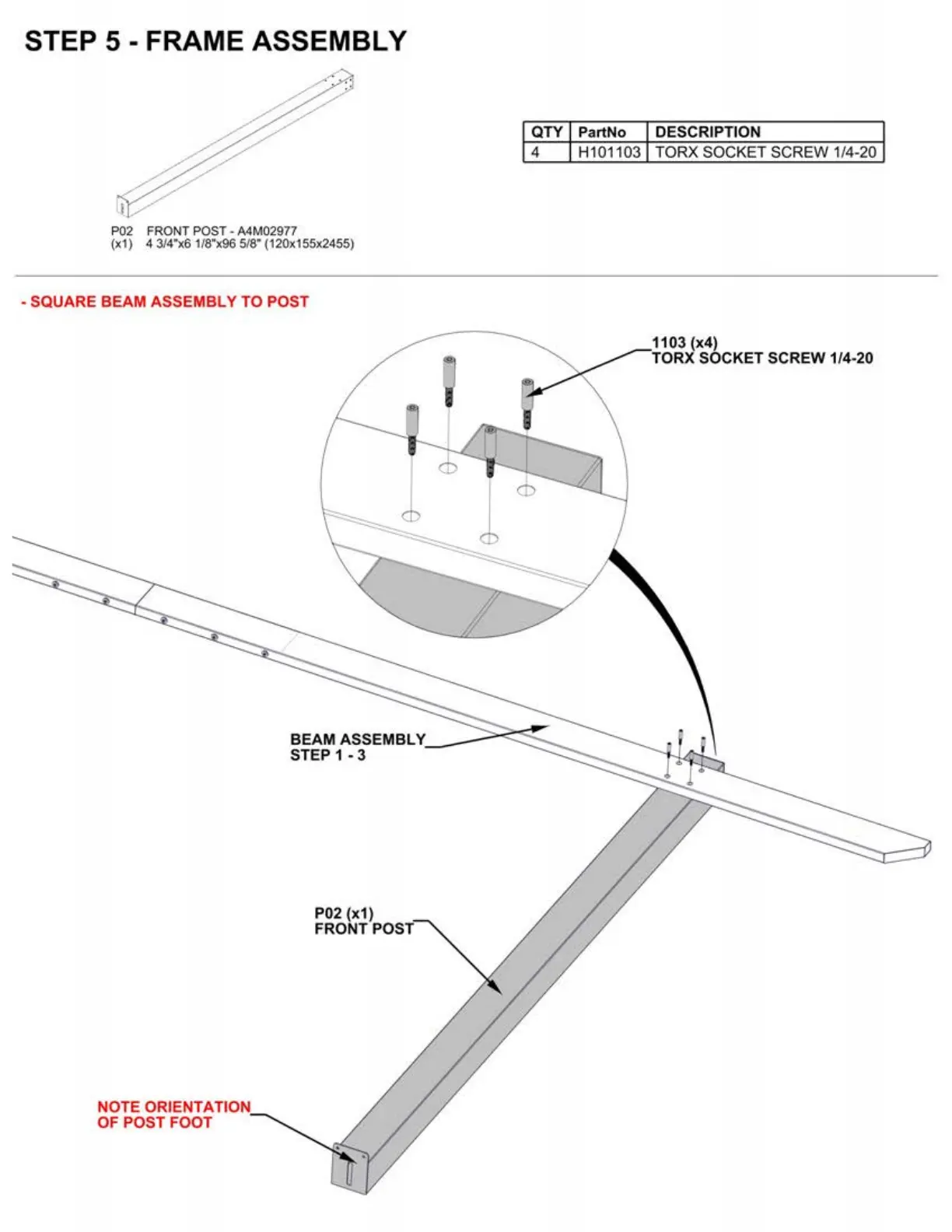

STEP 5 - FRAME ASSEMBLY
P 02 F RO NT POST - A4 M02977
(x1) 4 3/4"x6 1/8"x96 5/8" (120x155x2455)
• SQUARE BEAM ASSEMBLY TO POST
NOTE ORIENTATION
OF POST FOOT
BEAM ASSEMBLY
STEP 1 - 3
P02 (x1)
FRONT POST
QTY PartNo DESCRIPTION
4 H101103 TORX SOCKET SCREW 1/4-20
1103 (x4)
TORX SOCKET SCREW 1/4-20
