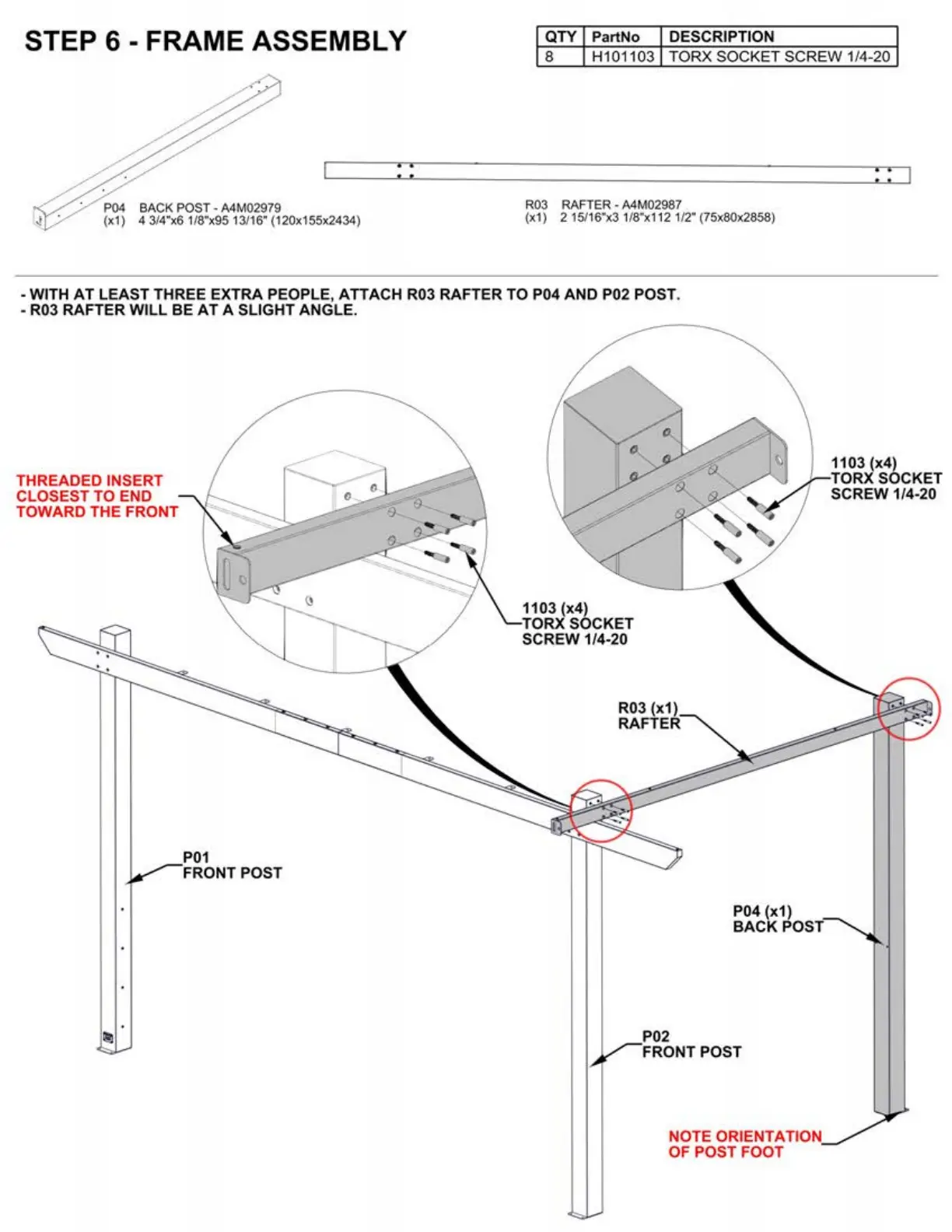

STEP 6 - FRAME ASSEMBLY
QTY PartNo DESCRIPTION
8 H 101103 TORX SOCKET SCREW 1 /4-20
BACK POST - A4M02979
4 3/4"x6 1/8"x95 13/16" (120x155x2434)
R03 RAFTER - A4M02987
(x1)
215 /16"x31/8"x1 1 21 /2" (75x80x2858)
-WITH AT LEAST THREE EXTRA PEOPLE, ATTACH R03 RAFTER TO P04 AND P02 POST.
- R03 RAFTER WILL BE AT A SLIGHT ANGLE.
THREADED INSERT
CLOSEST TO END
TOWARD THE FRONT
P01
FRONT POST
1103 (x4)
TORXSOCKET
SCREW 1/4-20
P02
P04 (x1)
BACK POST
FRONT POST
NOTE ORIENTATION
OF POST FOOT
1103 (x4)
TORXSOCKET
SCREW 1/4-20
