Backyard Discovery FUSION FIRE - Page 25

25

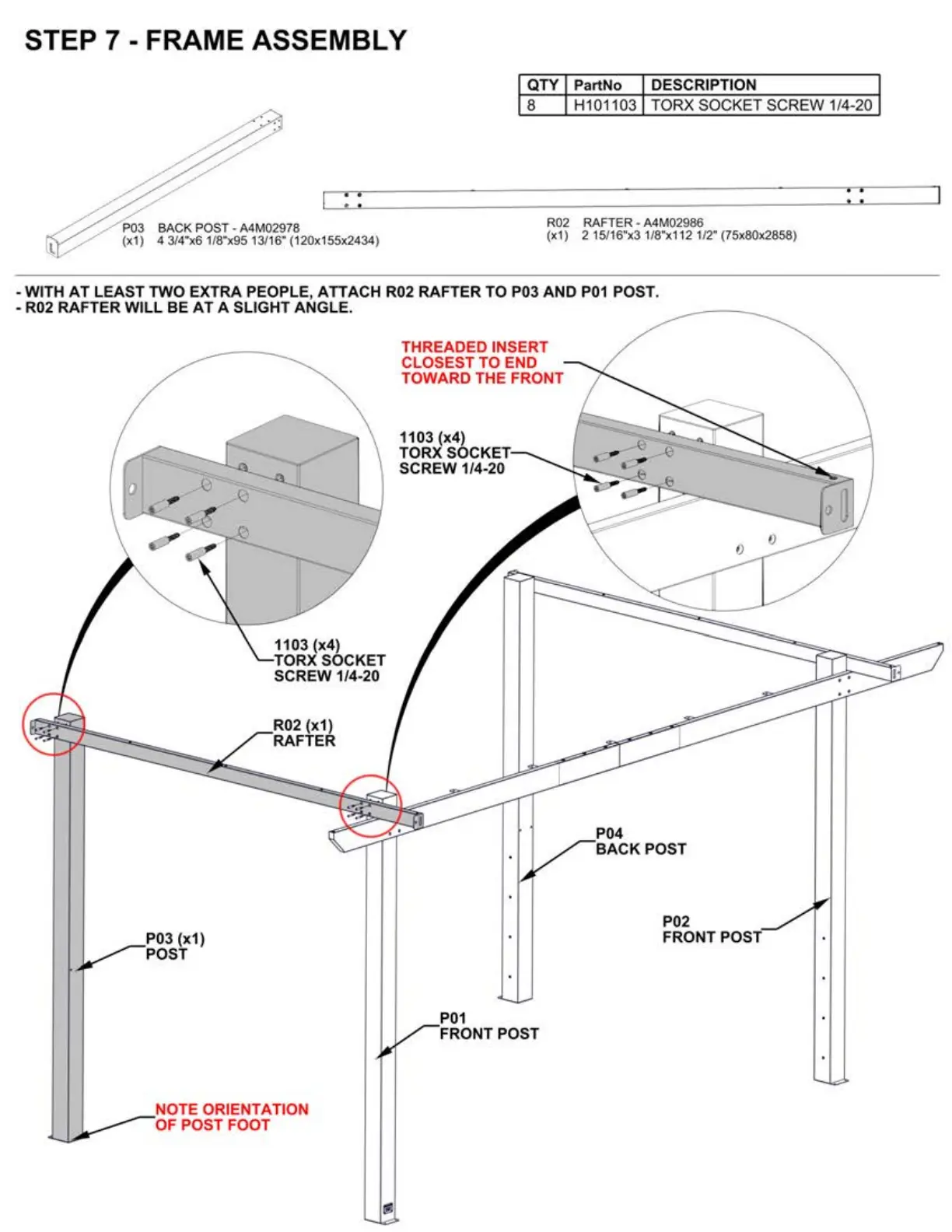

STEP 7 - FRAME ASSEMBLY
QTY PartNo DESCRIPTION
8 H101103 TORX SOCKET SCREW 1/4-20
BACK POST - A4M02978
4 3/4"x6 1/8"x95 13/16" (120x155x2434)
R02 RAFTER
- A4M02986
(x1)
215 /16"x31/8"x1121/2" (75x80x2858)
-WITH AT LEAST TWO EXTRA PEOPLE, ATTACH R02 RAFTER TO P03 AND P01 POST.
- R02 RAFTER WILL BE AT A SLIGHT ANGLE.
P03 (x1)
POST
1103 (x4)
TORX SOCKET
SCREW 1/4-20
NOTE ORIENTATION
OF POST FOOT
THREADED INSERT
CLOSEST TO END
TOWARD THE FRONT
1103 (x4)
TORXSOCKET
SCREW 1/4-20
P01
FRONT POST
P02
FRONT POST
