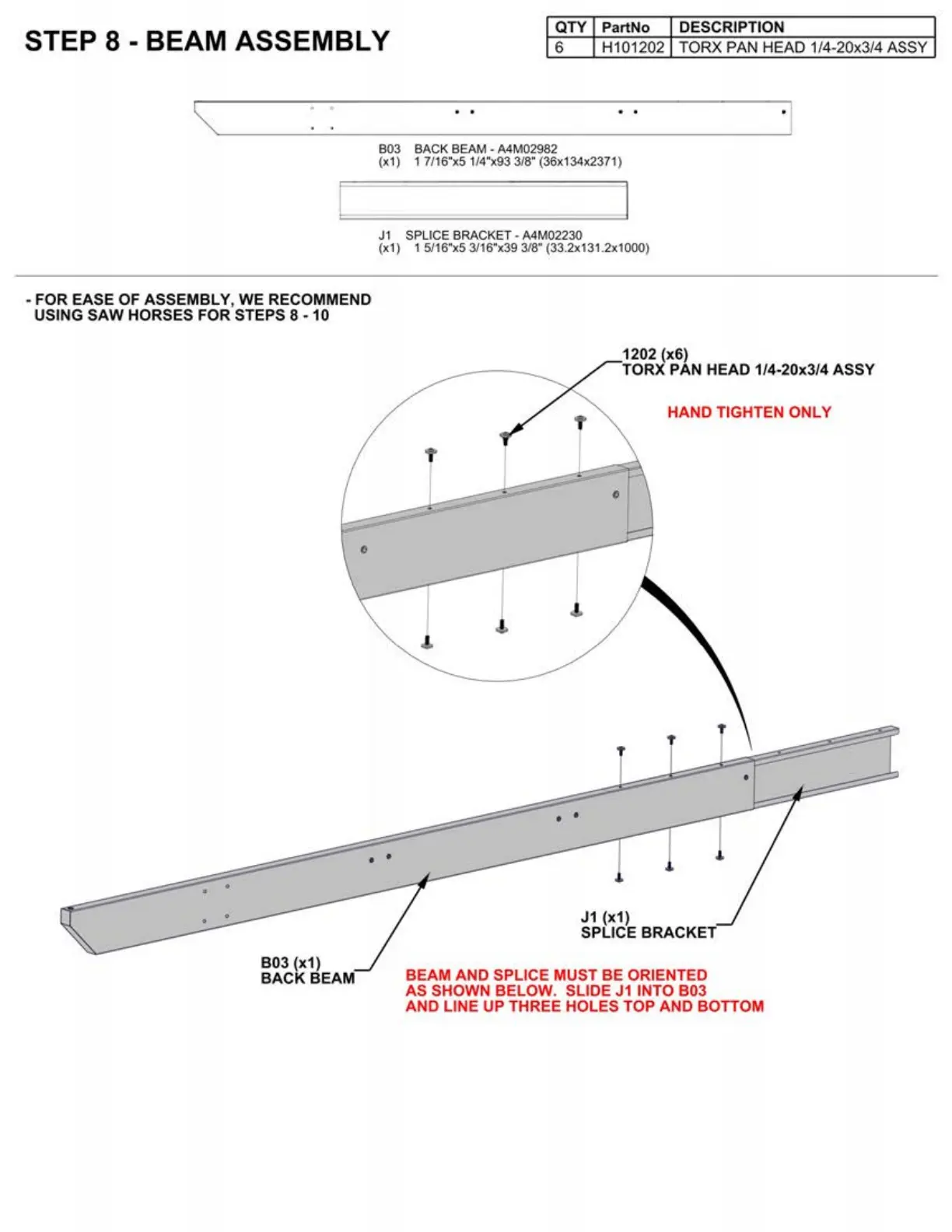

STEP 8 - BEAM ASSEMBLY
QTY PartNo DESCRIPTION
6
H101
202 TORX PAN HEAD 1/4-20x3/4 ASSY
- FOR EASE OF ASSEMBLY, WE RECOMMEND
USING SAW HORSES FOR STEPS 8
-10
B03 BACK BEAM - A4M02982
(x1) 1 7/16"x5 1/
4"
x
933
/8" (36x134x23
71
)
J1
SPLICE BRACKET - A
4M
02230
(x1) 1 5/16"x5 3/16"x39 3/8" (33.2x131.2x1000)
1202 (x6)
TORX PAN HEAD 1/4-20x3/4 ASSY
HAND TIGHTEN ONLY
•
• •
• •
B03 (x1)
BACK BEAM
J1 (x1)
SPLICE BRACKET
BEAM AND SPLICE MUST BE ORIENTED
AS SHOWN BELOW. SLIDE
J1
INTO B03
AND LINE UP THREE HOLES TOP AND BOTTOM
To Next Page
