27

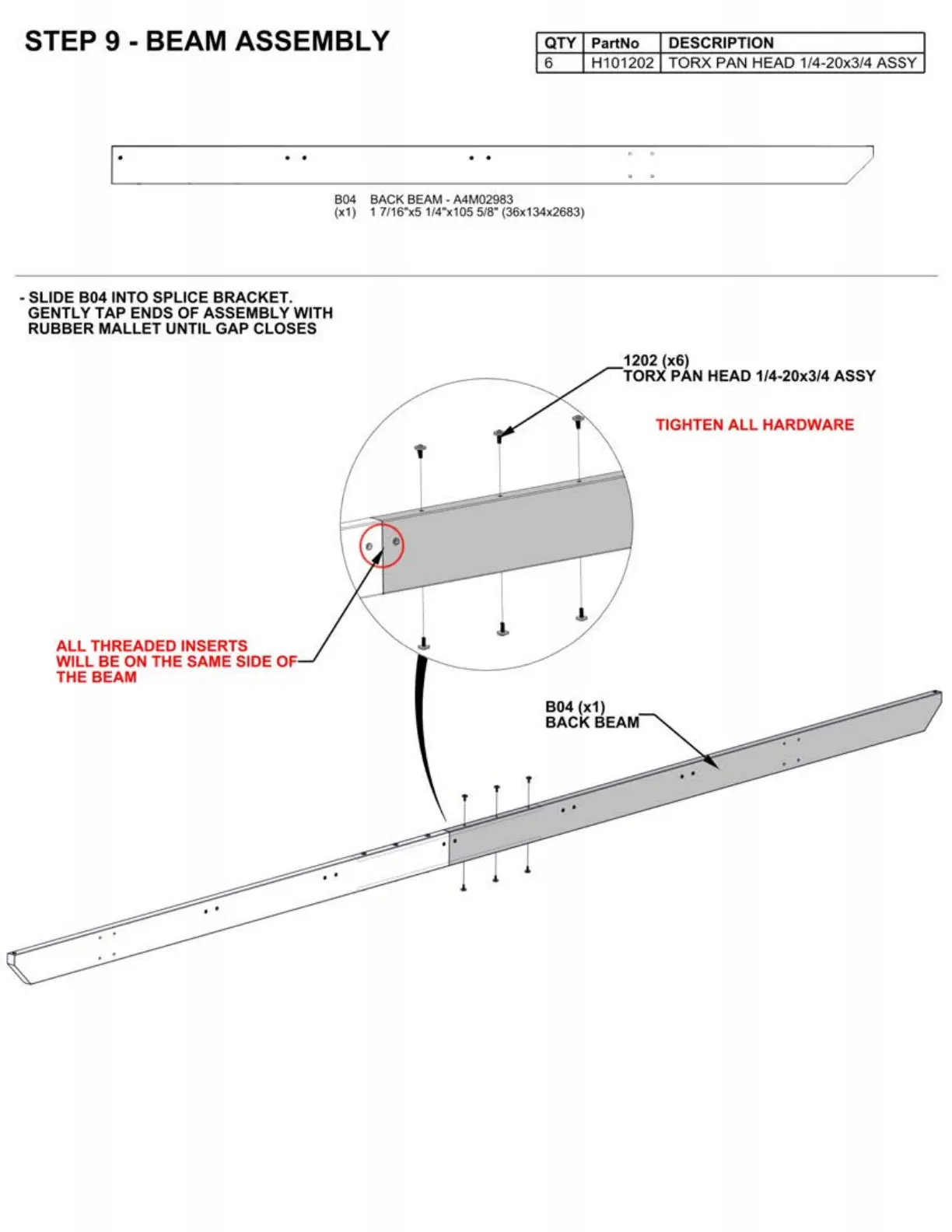

STEP 9 - BEAM ASSEMBLY
QTY PartNo DESCRIPTION
6 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
. .
B04 BACK BEAM - A4M02983
(x1) 1 7/16"x5 1/4"x105 5/8" (36x134x2683)
- SLIDE B04 INTO SPLICE BRACKET.
GENTLY TAP ENDS OF ASSEMBLY WITH
RUBBER MALLET UNTIL GAP CLOSES
ALL THREADED INSERTS
WILL BE
ON THE SAME SIDE OF
THE BEAM
1202 (x6)
TORX PAN HEAD 1/4-20x3/4 ASSY
B04 (x1)
BACK BEAM
TIGHTEN ALL HARDWARE
