Backyard Discovery FUSION FIRE - Page 29

29

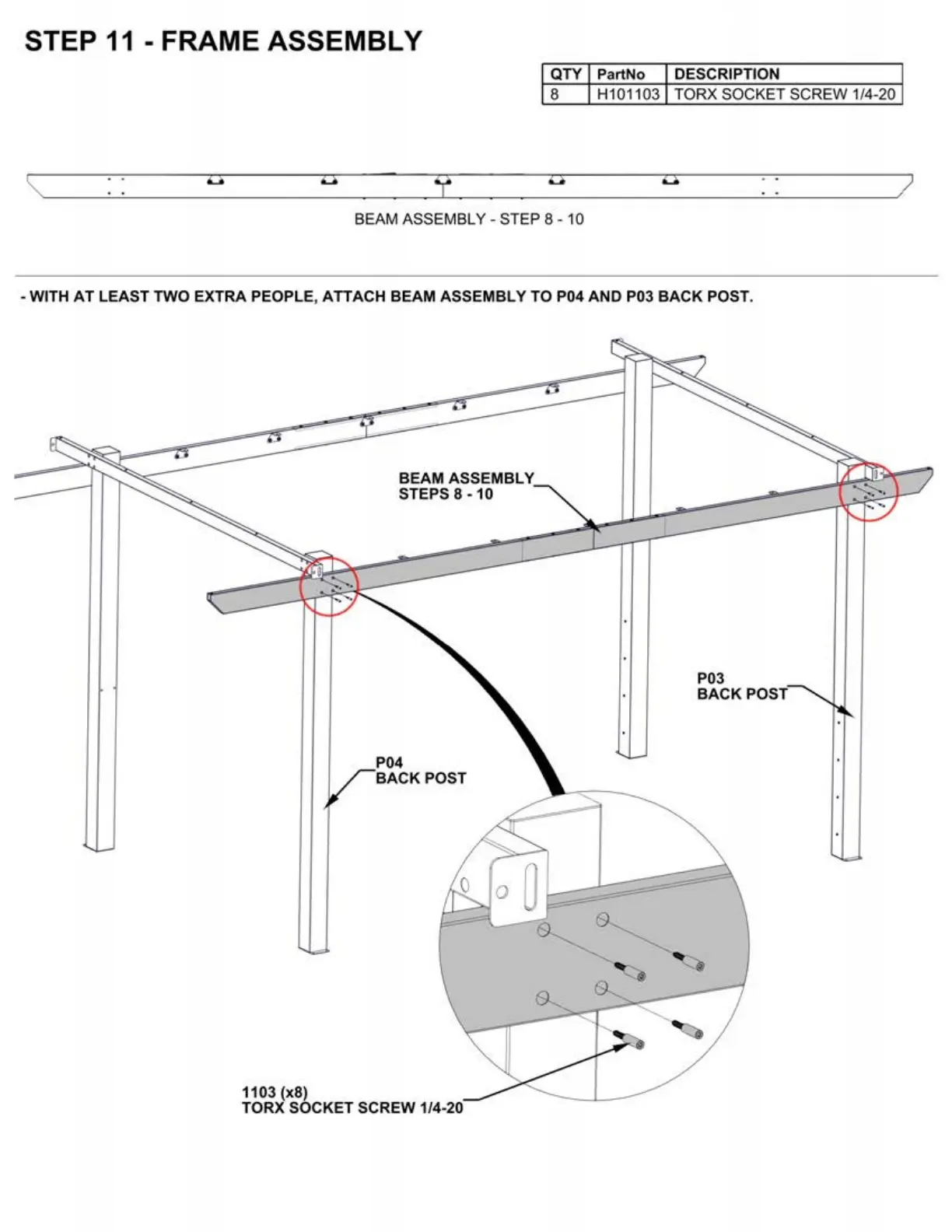

STEP 11 - FRAME ASSEMBLY
QTY PartNo DESCRIPTION
8 H101103 TORX SOCKET SCREW 1/4-20
\ ~ _______ n _____ n _____ ?__.____ ____ n _____ n _________ ~)
BEAM ASSEMBLY - STEP 8 - 10
-WITH AT LEAST TWO EXTRA PEOPLE, ATTACH BEAM ASSEMBLY TO P04 AND P03 BACK POST.
1103 (x8)
BEAM ASSEMBLY
STEPS 8
-10
P04
BACK POST
TORX SOCKET SCREW 1/4-20
P03
BACK POST
