30

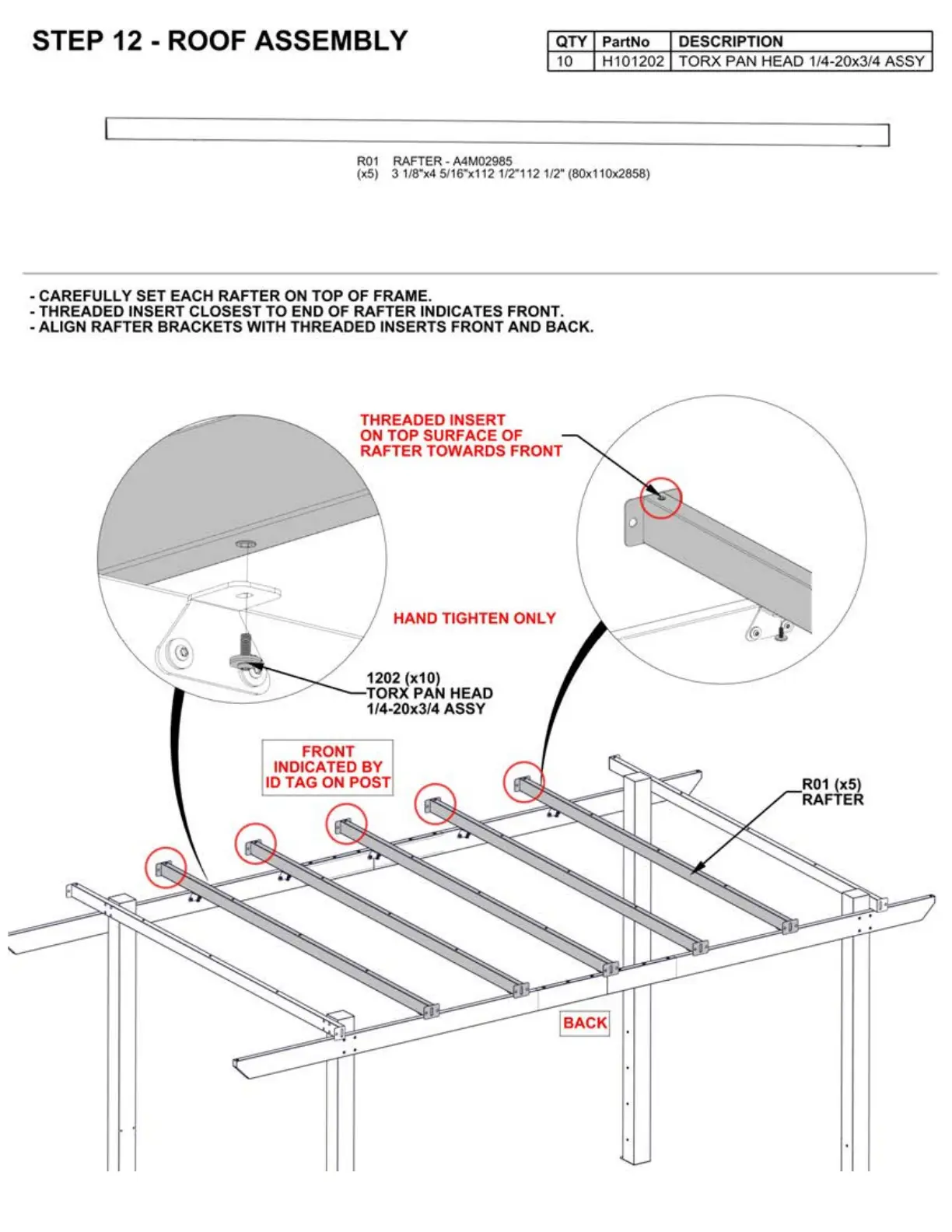

STEP12-ROOFASSEMBLY
QTY PartNo DESCRIPTION
10 H101202 TOR X PAN HEAD 1/4-20x3/4 ASSY
R01 RAFTER - A4M02985
(x5) 3 1/8"x4 5/16"x112 1/
2"1 12 1/2" (80x110x2858)
- CAREFULLY SET EACH RAFTER ON TOP OF FRAME.
-THREADED INSERT CLOSEST TO END OF RAFTER INDICATES FRONT.
- ALIGN RAFTER BRACKETS WITH THREADED INSERTS FRONT AND BACK.
THREADED INSERT
ON TOP SURFACE OF
RAFTER TOWARDS FRONT
HAND TIGHTEN ONLY
1202 (x10)
TORX PAN HEAD
1 /4-20x3/4 ASSY
FRONT
INDICATED
BY
ID TAG ON POST
---------------
