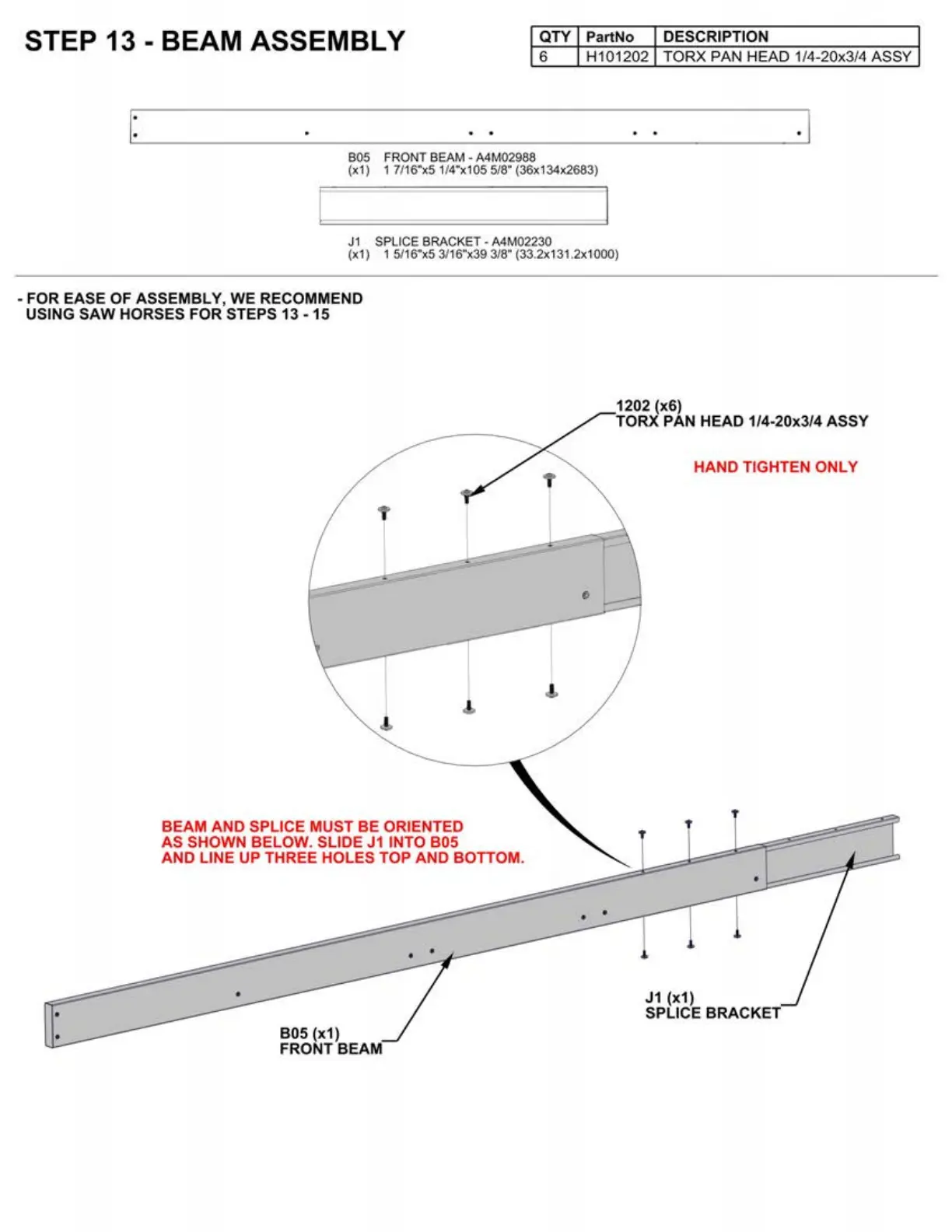

STEP 13 - BEAM ASSEMBLY
QTY PartNo DESCRIPTION
6 H101 202 TORX PAN HEAD 1/4-20x3/4 ASSY
B OS FRONT BEAM - A4M02988
(x 1) 1 7/ 16"x5 1/4"x105 5/8" (36x134x2683)
J1 SPLICE BRACKET - A4M02230
(x1)
15 /1 6"x53/ 16"x39 3/8" (33.2x131.2x1000)
- FOR EASE OF ASSEMBLY, WE RECOMMEND
USING SAW HORSES FOR STEPS 13
-15
BEAM AND SPLICE MUST BE ORIENTED
AS SHOWN BELOW. SLIDE J1 INTO BOS
AND LINE UP THREE HOLES TOP AND BOTTOM.
BOS (x1)
FRONT
BEAM
1202 (x6)
TORX PAN HEAD 1/4-20x3/4 ASSY
HAND TIGHTEN ONLY
J1 (x1)
SPLICE BRACKET
