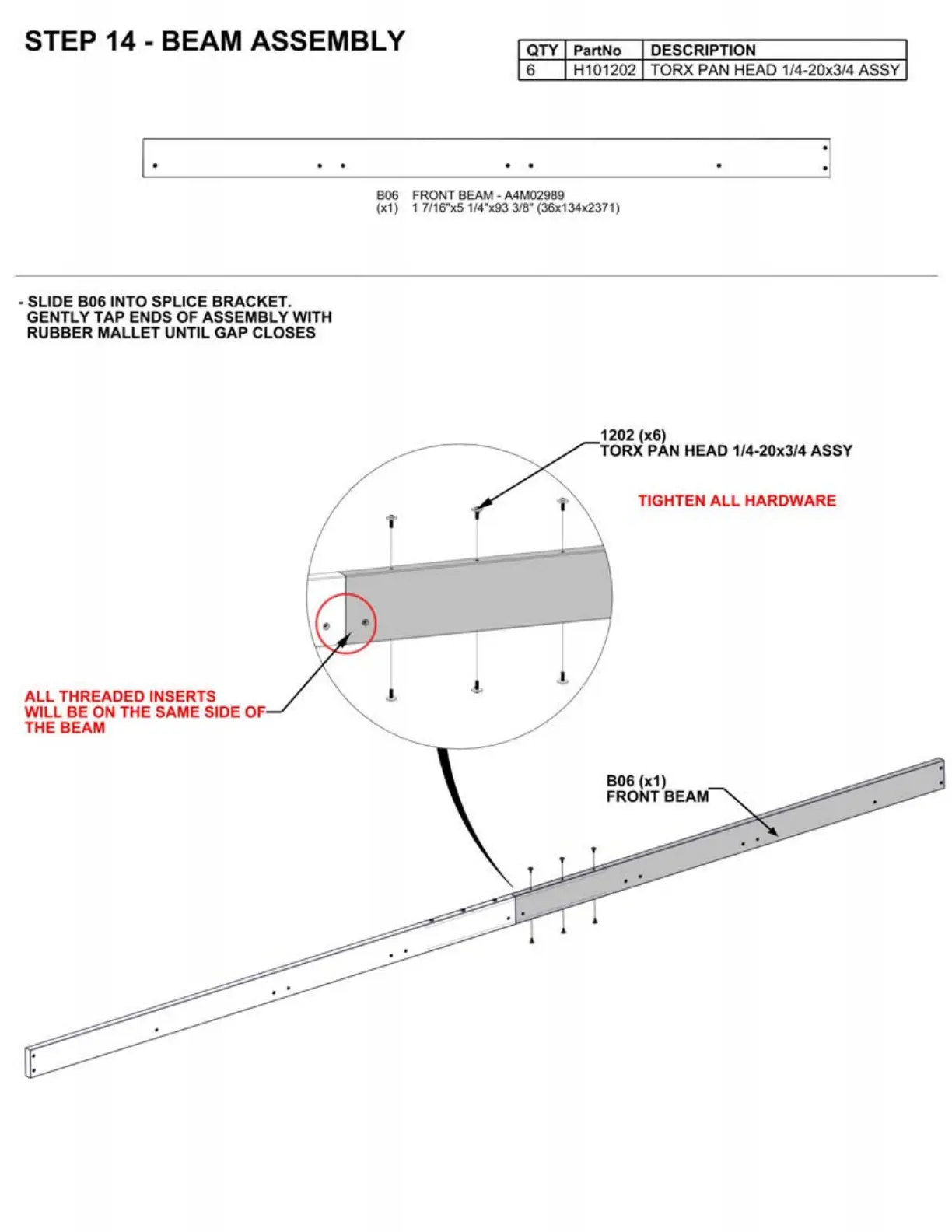

STEP 14 - BEAM ASSEMBLY
QTY PartNo DESCRIPTION
• SLIDE
BOG INTO SPLICE BRACKET.
GENTLY TAP ENDS OF ASSEMBLY WITH
RUBBER MALLET UNTIL GAP CLOSES
ALL THREADED INSERTS
WILL BE
ON THE SAME SIDE OF
THE BEAM
6 H101202 TORX
PAN HEAD 1/4-20x3/4 ASSY
. .
B06 FRONT BE AM - A4M02989
(x1) 1 7/16"x51/4"x933/8" (36x134x2371)
1202 {x6)
TORX PAN HEAD 1/4-20x3/4 ASSY
TIGHTEN ALL HARDWARE
B06 {x1)
FRONT BEAM
