33

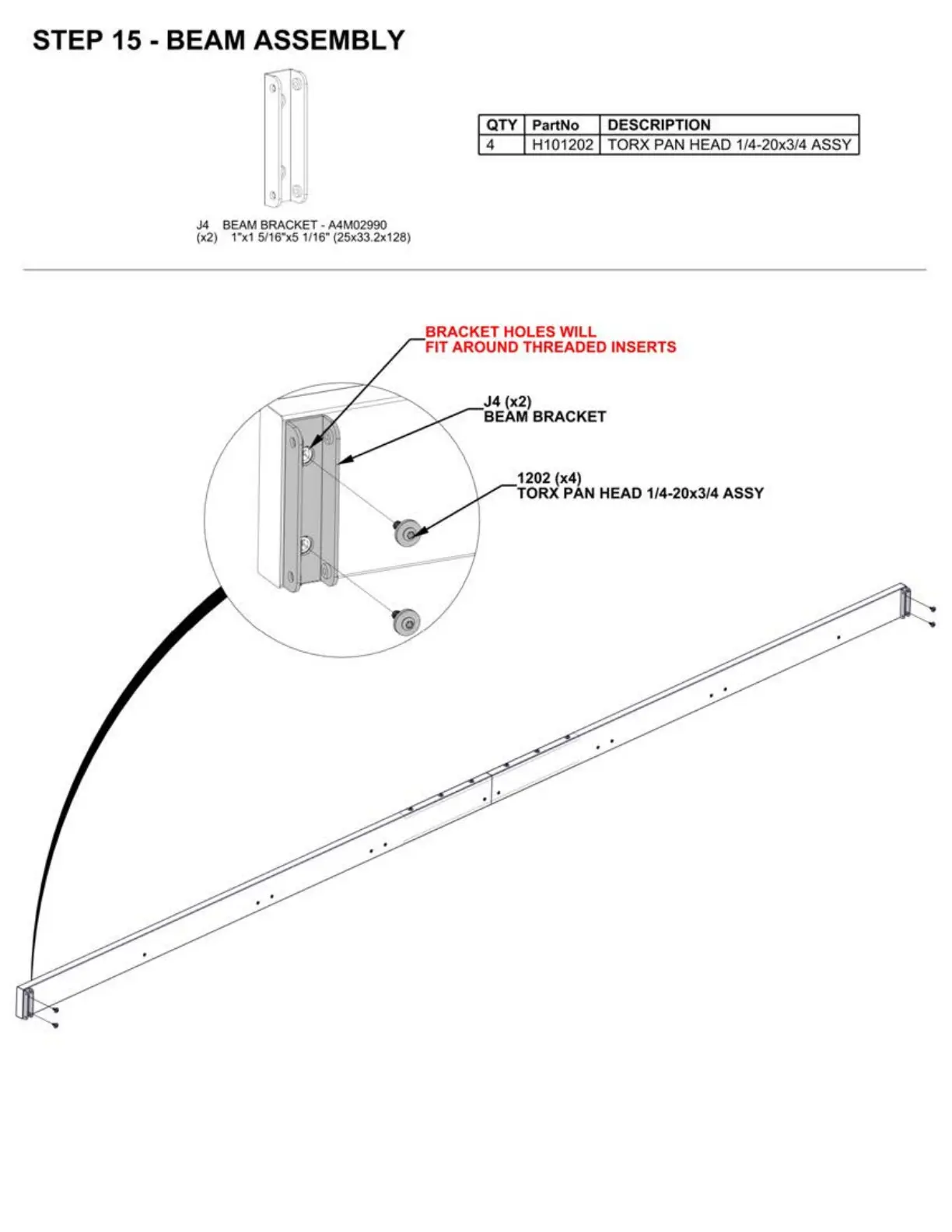

STEP 15 - BEAM ASSEMBLY
QTY PartNo DESCRIPTION
4 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
J4 BEAM BRACKET - A4M02990
(x2) 1"x1 5/16"x5 1/16" (25x33.2x128)
BRACKET HOLES WILL
FIT AROUND THREADED INSERTS
J4 (x2)
BEAM BRACKET
1202 (x4)
TORX PAN HEAD 1/4-20x3/4 ASSY
