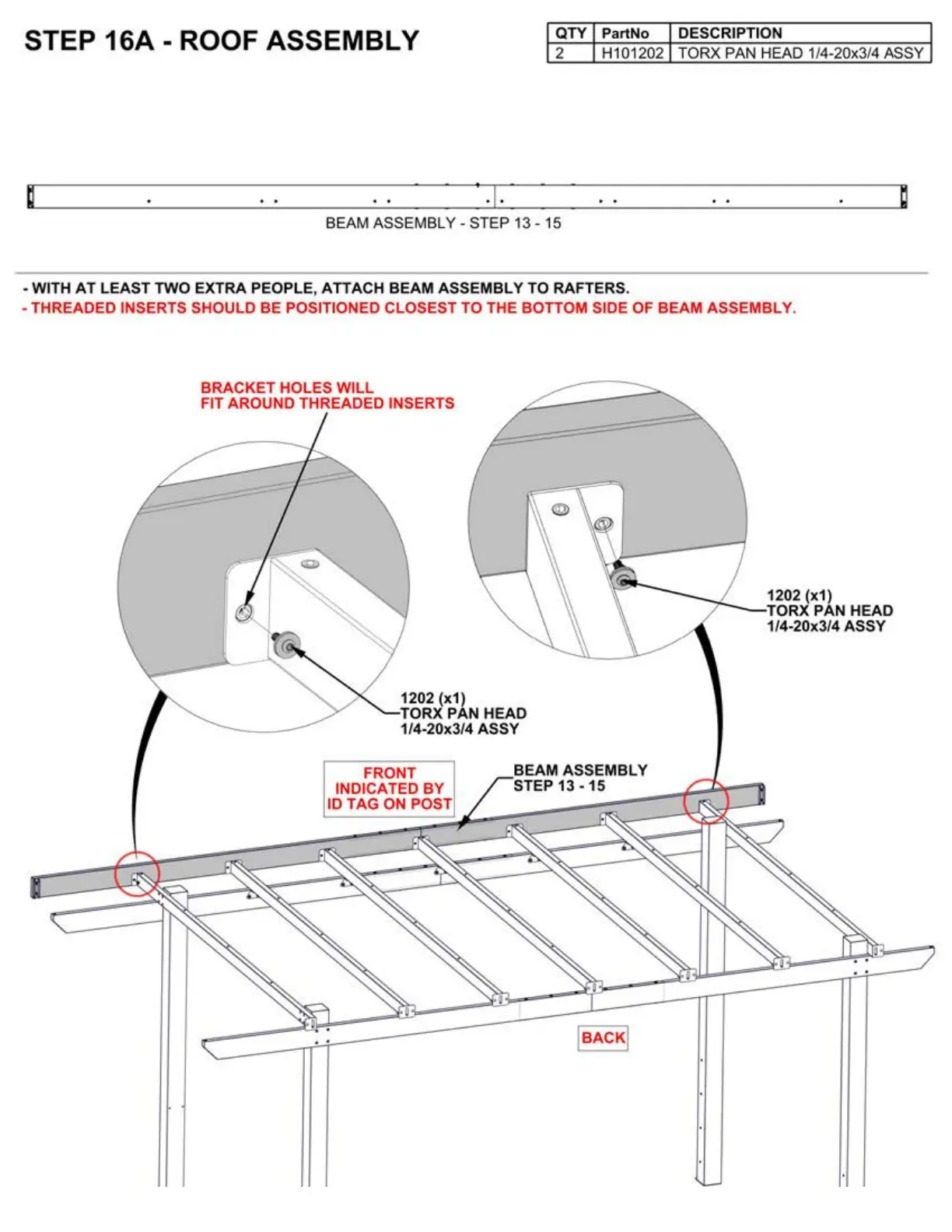

STEP 16A - ROOF ASSEMBLY
QTY PartNo DESCRIPTION
2 H101202 TORX PAN HEAD 1/4-20x3/4
ASS
Y
BEAM ASSEMBLY - STEP 13 - 15
- WITH
AT
LEAST TWO EXTRA PEOPLE, ATTACH BEAM ASSEMBLY TO RAFTERS.
- THREADED INSERTS SHOULD BE POSITIONED CLOSEST
TO
THE BOTTOM SIDE OF BEAM ASSEMBLY.
BRACKET HOLES WILL
FIT AROUND THREADED INSERTS
1202 (x1)
TORX PAN HEAD
1 /4-20x3/4 ASSY
FRONT
INDICATED BY
ID TAG
ON
POST
BEAM ASSEMBLY
STEP 13 - 15
1202 (x1)
TORX PAN HEAD
1 /4-20x3/4 ASSY
