Backyard Discovery FUSION FIRE - Page 36

36

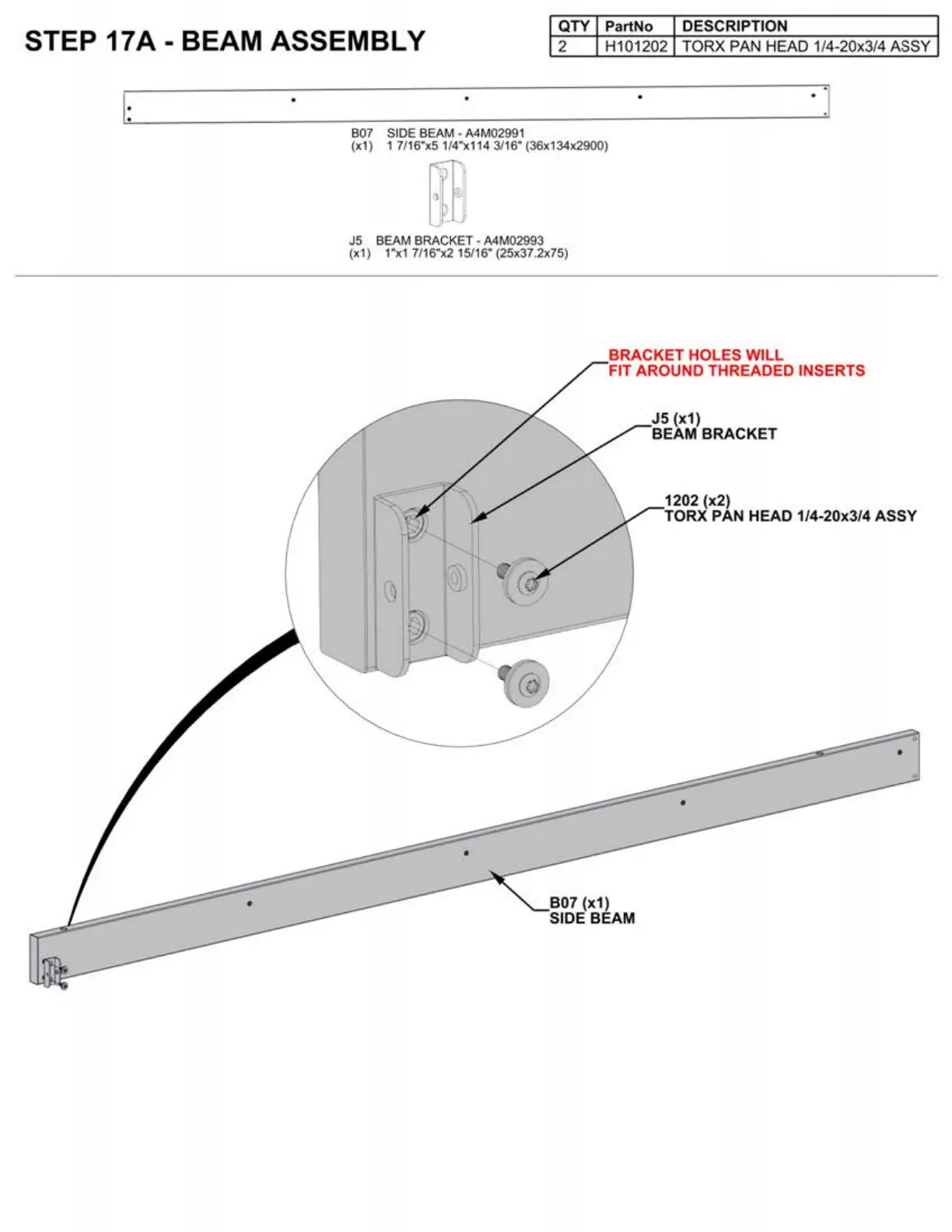

STEP
17A-
BEAM ASSEMBLY
QTY PartNo DESCRIPTION
2 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
B07 SIDE BEAM - A4M02991
(
x1
)
17
/16"
x51
/4"
x1143
/16" (36x134x2900)
J5 BEAM BRACKET - A4M02993
(x1) 1"x
17
/16"x215/16" (25x37.2x75)
BRACKET HOLES WILL
FIT AROUND THREADED INSERTS
JS
(x1)
BEAM BRACKET
1202
(x2)
TORX PAN HEAD 1/4-20x3/4 ASSY
•
