Backyard Discovery FUSION FIRE - Page 37

37

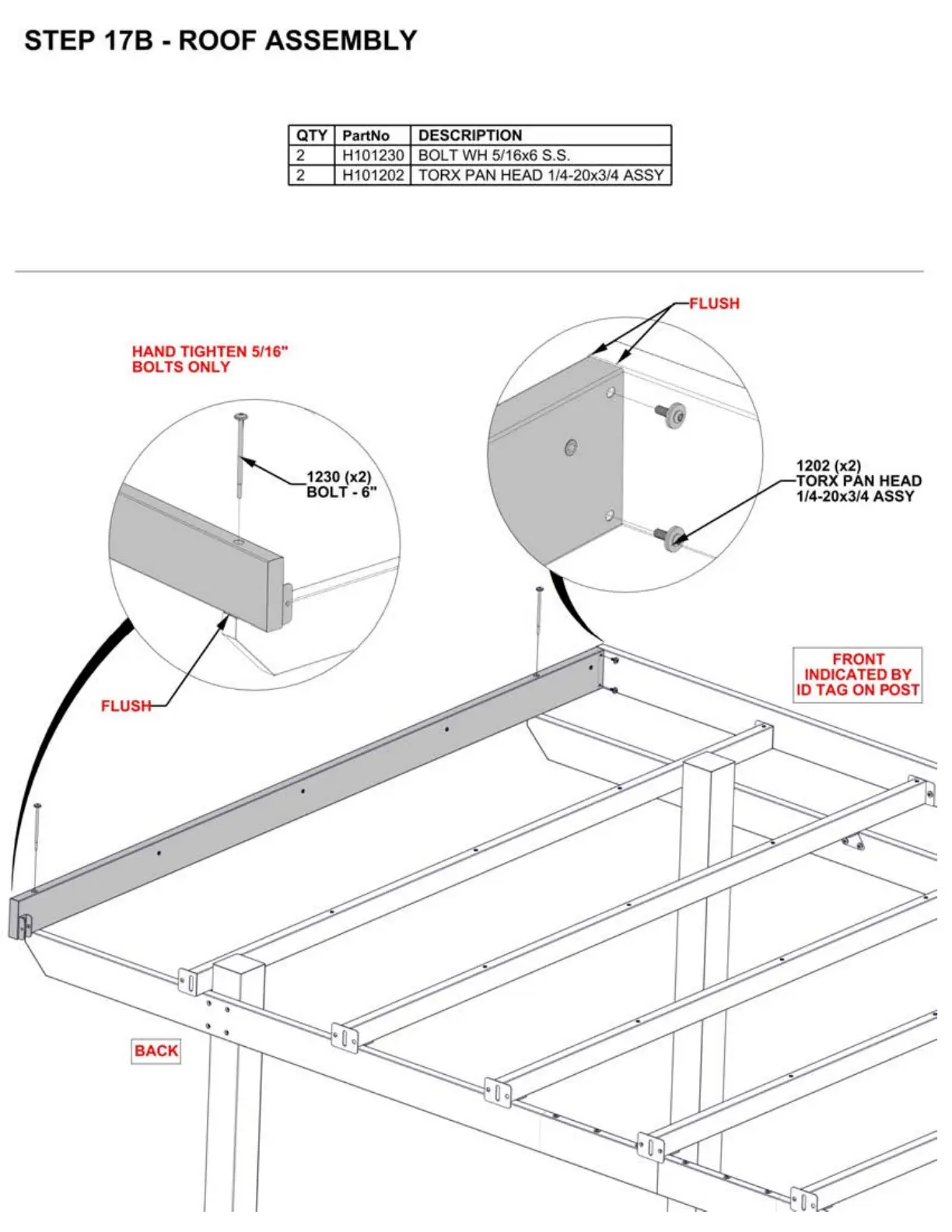

STEP 17B - ROOF ASSEMBLY
HAND TIGHTEN 5/16"
BOLTS ONLY
QTY
2
2
PartNo
H101230
H101202
DESCRIPTION
BOLT WH 5/16x6 S.S.
TORX PAN HEAD 1/4-20x3/4 ASSY
1202 (x2)
TORX PAN HEAD
1/4-20x3/4 ASSY
FRONT
INDICATED BY
ID TAG ON POST
