Backyard Discovery FUSION FIRE - Page 38

38

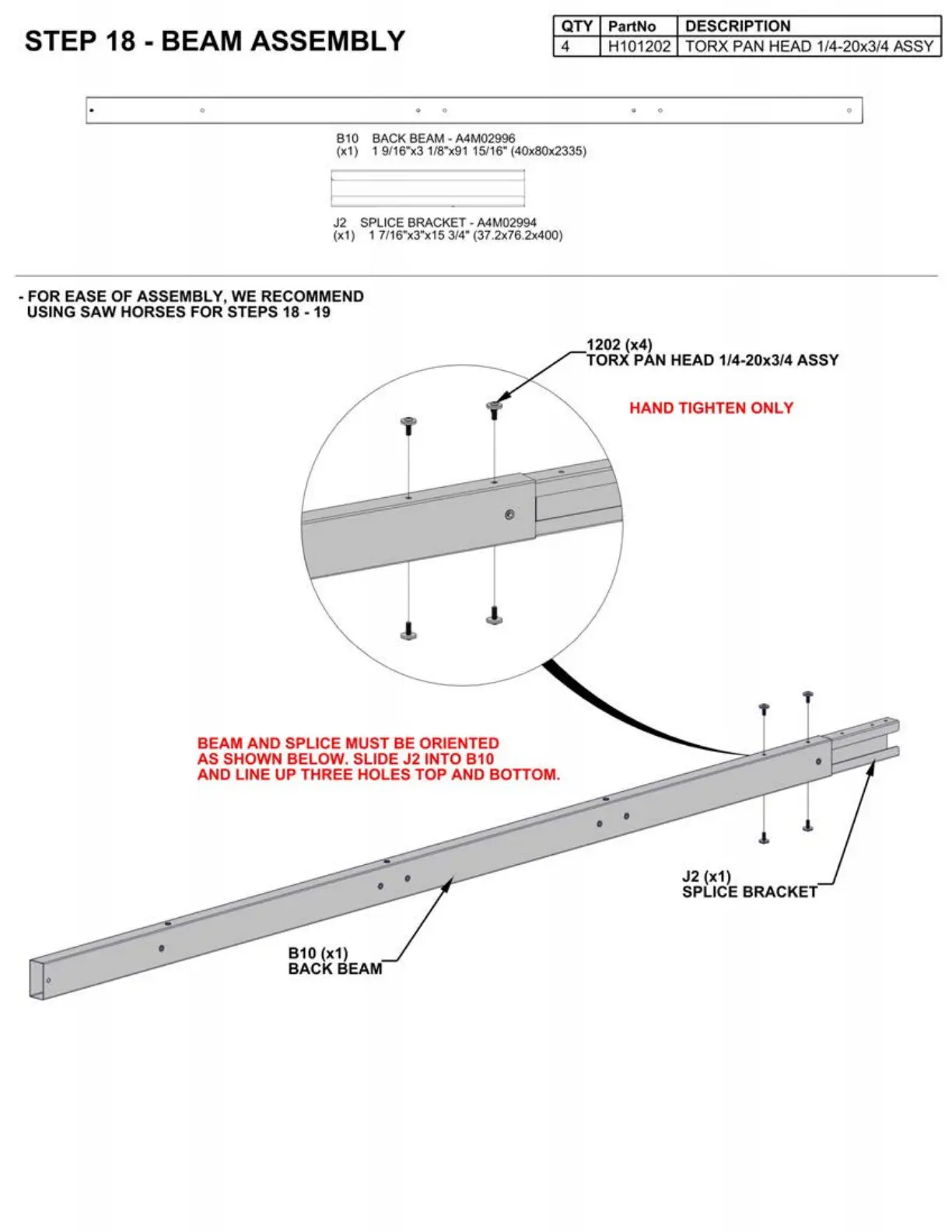

STEP 18 - BEAM ASSEMBLY
QTY PartNo DESCRIPTION
4 H101202 TORX PAN HEAD 1/4-20x3/4 ASSY
B10 BACK BEAM - A4M02996
(x1) 1 9/16"x3 1/8"x91 15/16" (40x80x2335)
J2 SPLICE BRACKET - A4M02994
(x1) 1 7/16"x3"x1
53 /4" (37.2x76.2x400)
- FOR EASE OF ASSEMBLY, WE RECOMMEND
USING SAW HORSES FOR STEPS 18
-19
BEAM AND SPLICE MUST BE ORIENTED
AS SHOWN BELOW. SLIDE J2 INTO
810
AND LINE UP THREE HOLES TOP AND BOTTOM.
B10 (x1)
BACK BEAM
1202 (x4)
TORX PAN HEAD 1/4-20x3/4 ASSY
HAND TIGHTEN ONLY
J2 (x1)
SPLICE BRACKET
