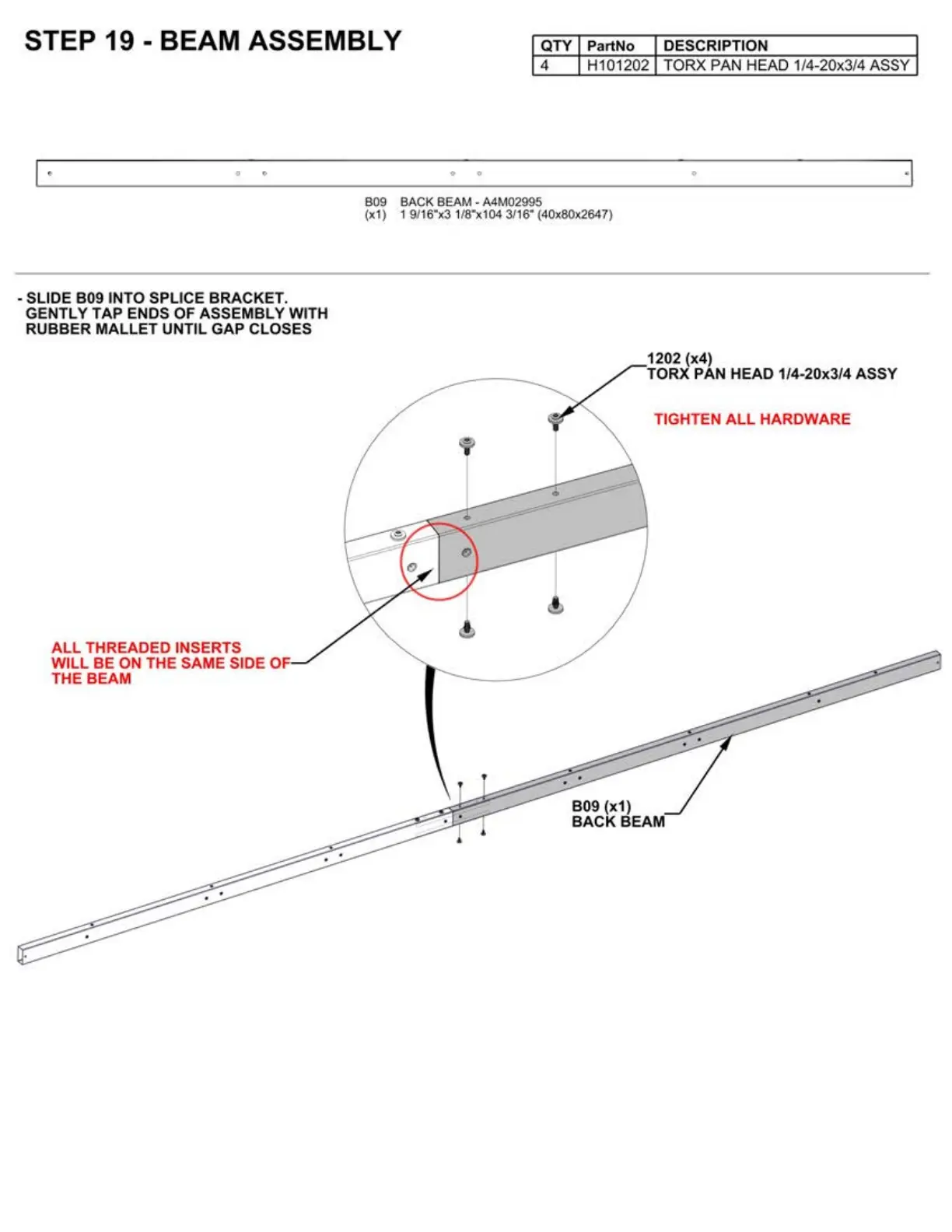

STEP 19 - BEAM ASSEMBLY
QTY PartNo DESCRIPTION
- SLIDE B09 INTO SPLICE BRACKET.
GENTLY TAP ENDS OF ASSEMBLY WITH
RUBBER MALLET UNTIL GAP CLOSES
ALL THREADED INSERTS
WILL BE
ON THE SAME SIDE OF
THE BEAM
4 H101202 TORX PAN HEAD 1/4-20x3/4 A
SS Y
B09 BACK B EAM - A4M02995
(x1)
19/16"x31/8"x 104 3/ 16" (40x80x2647)
1202 (x4)
TORX PAN HEAD 1/4-20x3/4 ASSY
TIGHTEN ALL HARDWARE
