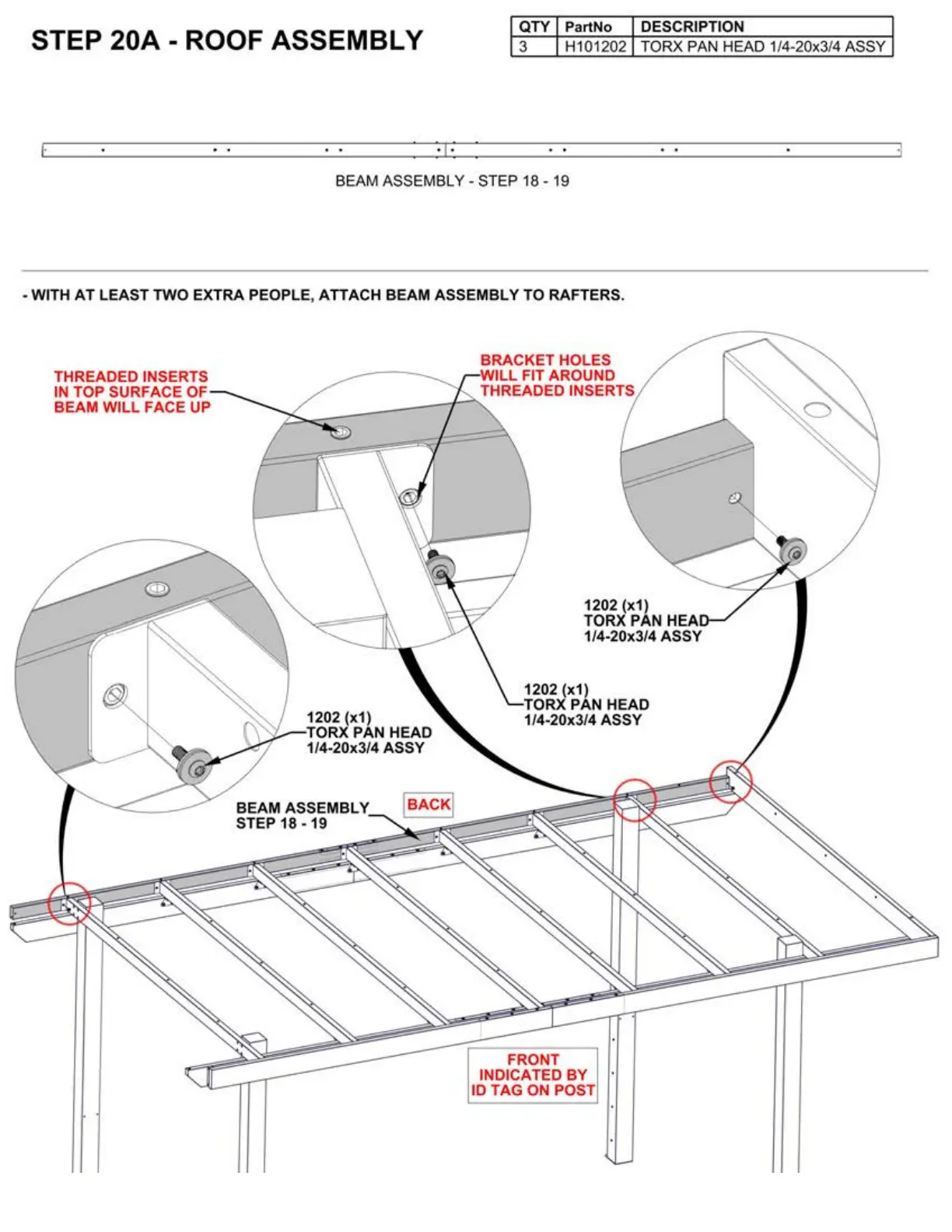

STEP 20A - ROOF ASSEMBLY
QTY PartNo DESCRIPTION
3
H1 01202 TORX PAN HEAD 1/4 -2 0x3/4 ASSY
BEAM ASSEMBLY - STEP 18 - 19
-WITH AT LEAST TWO EXTRA PEOPLE, ATTACH BEAM ASSEMBLY TO RAFTERS.
THREADED INSERTS
IN TOP SURFACE OF
BEAM
WILL FACE UP
1202 (x1)
TORX PAN HEAD
1/4-20x3/4 ASSY
BRACKET HOLES
WILL FIT AROUND
THREADED INSERTS
1202 (x1)
TORX PAN
HEA
1 /4-20x3/4 ASSY
1202
(x 1)
TORX PAN HEAD
1 /4-20x3/4 ASSY
FRONT
INDICATED
BY
ID TAG ON POST
