Backyard Discovery FUSION FIRE - Page 41

41

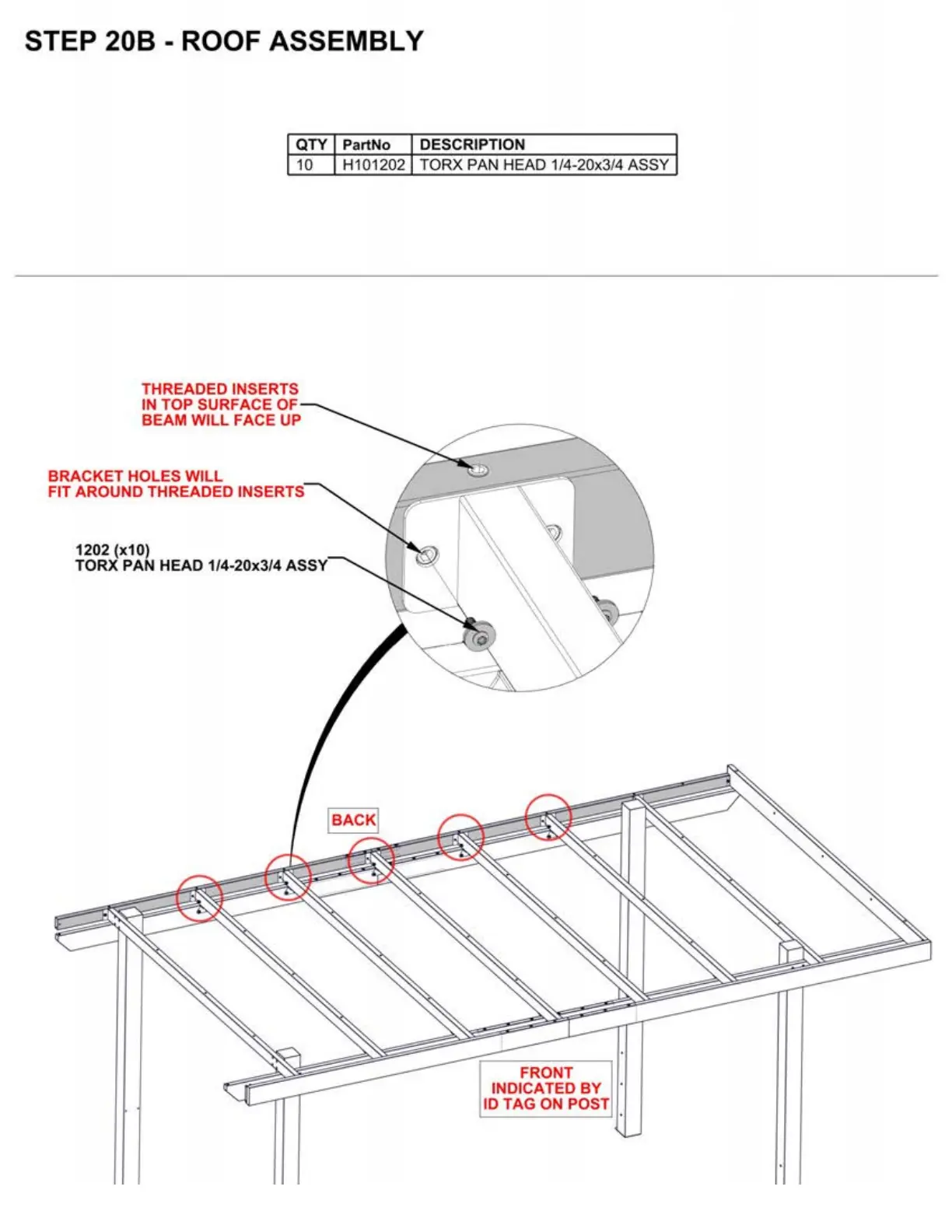

STEP 208 - ROOF ASSEMBLY
QTY PartNo DESCRIPTION
10 H101202 TORX
PAN HEAD 1/4-20x3/4 ASSY
THREADED INSERTS
IN TOP SURFACE OF
BEAM
WILL FACE UP
BRACKET HOLES WILL
FIT AROUND THREADED INSERTS
1202 (x10)
TORX PAN HEAD 1/4-20x3/4 ASSY
FRONT
INDICATED
BY
ID TAG ON POST
