Backyard Discovery FUSION FIRE - Page 42

42

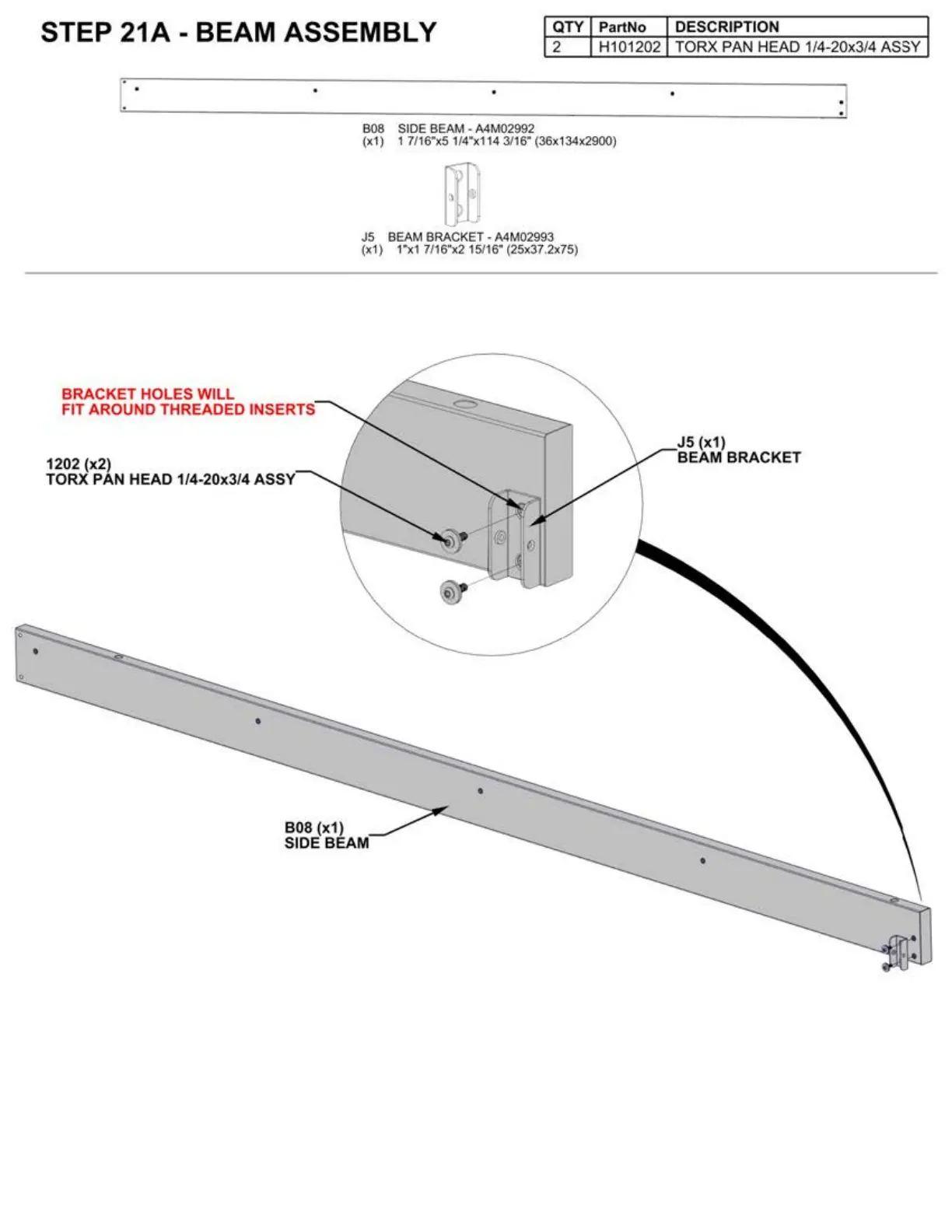

STEP 21A - BEAM ASSEMBLY
QTY PartNo DESCRIPTION
2 H101202 T OR X PAN HE AD 1/4-20x3/4 AS SY
B08 SI DE BEAM - A4M02992
(x1) 1 7/16"x51/4"x
11 43 /16" (36x134x2900)
tm
J5 BEAM BRACKET - A4M02993
(x1) 1
"x1 7/16" x2 15/16" (25x37.2x75)
BRACKET HOLES WILL
FIT AROUND THREADED INSERTS
1202 (x2)
TORX PAN HEAD 1/4-20x3/4 ASSY
~
BOB (x1)
SIDE BEAM
JS (x1)
BEAM BRACKET
