43

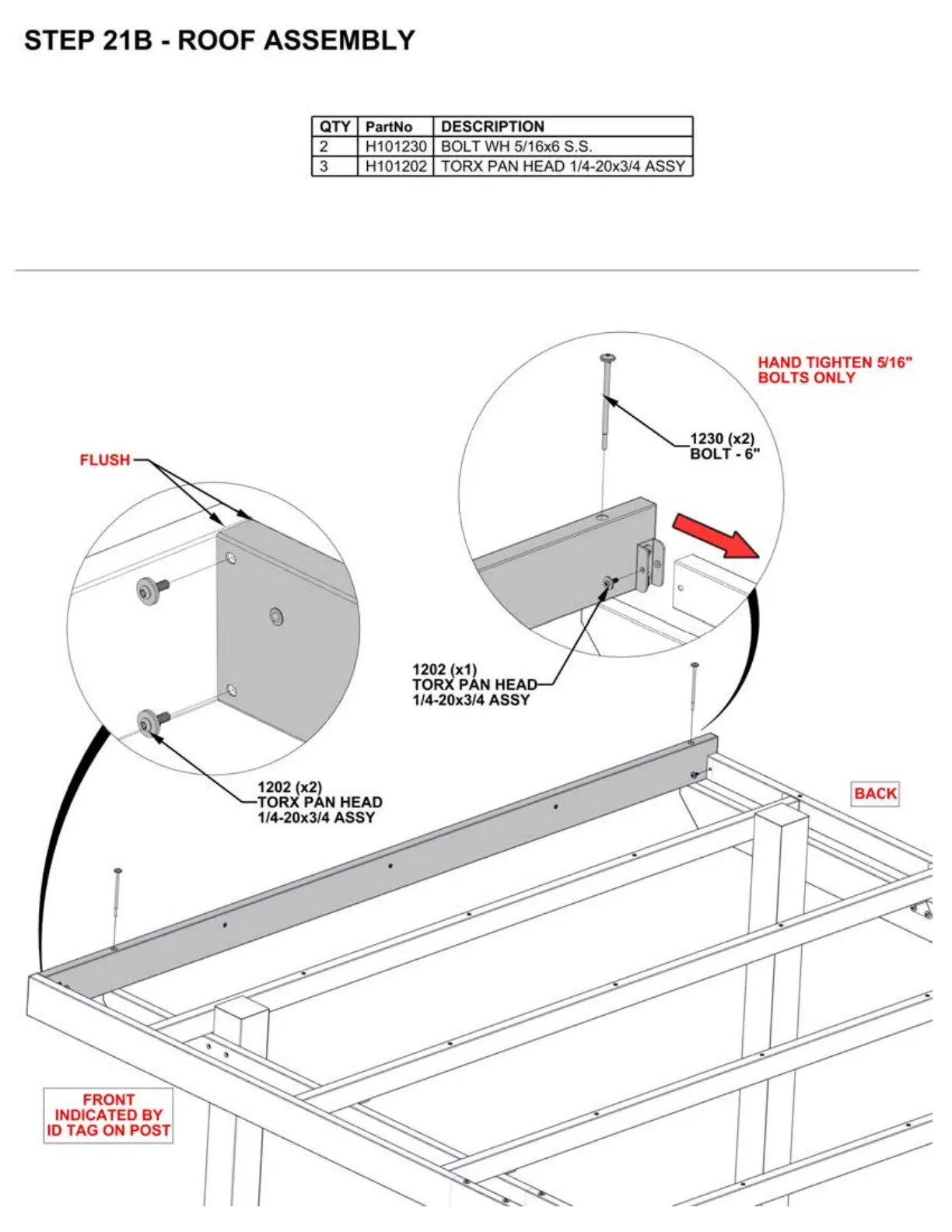

STEP 21 B - ROOF ASSEMBLY
FRONT
INDICATED
BY
ID TAG ON POST
QTY
2
3
1202 (x2)
PartNo DESCRIPTION
H101230 BOLT WH 5/16x6 S.S.
H101202 TORX PAN HEAD 1/4-20x
3/ 4 ASSY
1202 (x1)
TORX PAN HEA
1 /4-20x3/4 ASSY
TORX PAN HEAD
1/4-20x3/4 ASSY
HAND TIGHTEN 5/16"
BOLTS ONLY
1230 (x2)
BOLT- 6"
