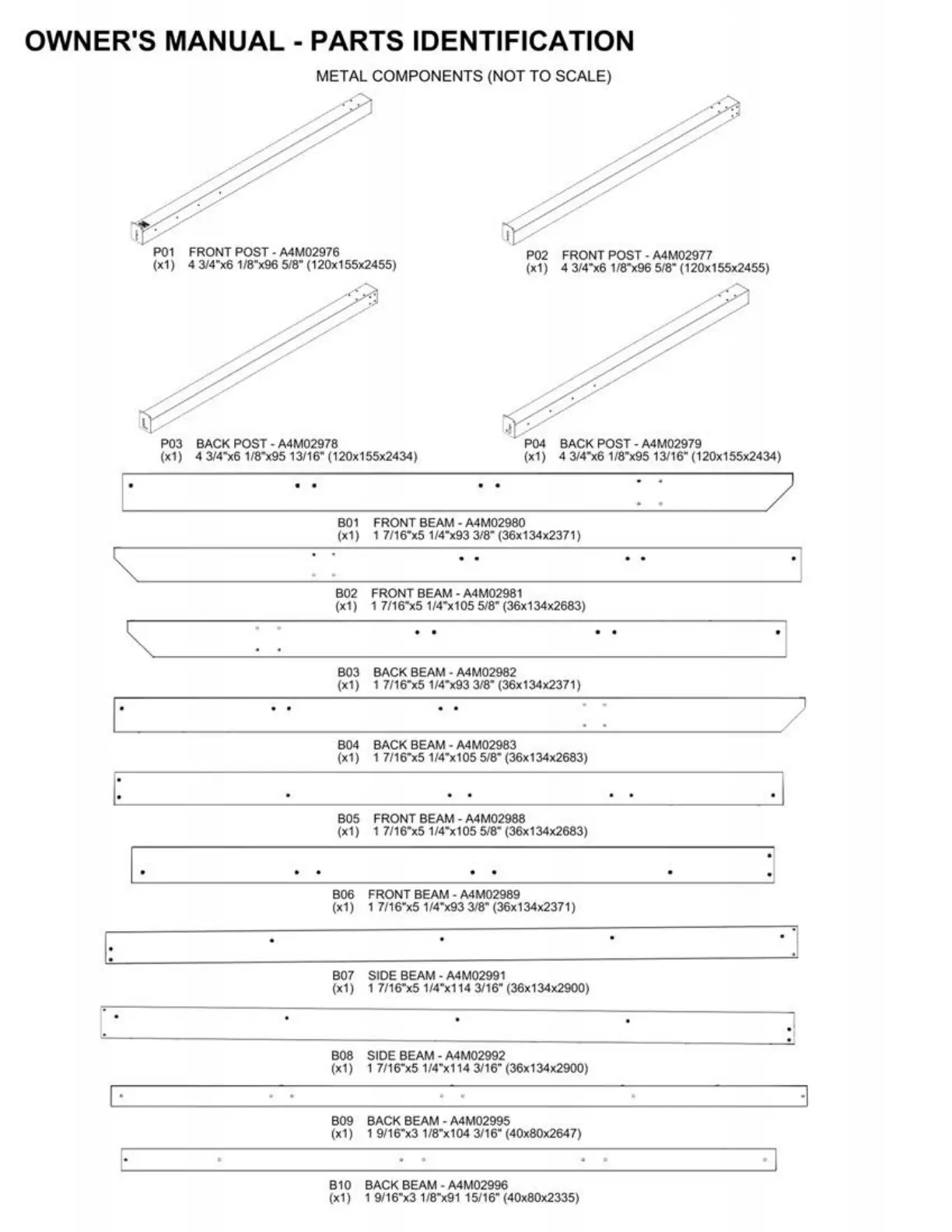

OWNER'S MANUAL - PARTS IDENTIFICATION
METAL COMPONENTS (NOT TO SCALE)
P01
FRONT POST - A4M02976
(x1) 4 3/4"x6 1/8"x96 5/8" (120x155x2455)
P02 FRONT POST
- A4M02977
(x1) 4
3/4"x6 1/8"x96 5/8" (120x155x2455)
P03 BACK POST
- A4M02978 P04 BACK POST
-
A4M02979
(x1) 4
3/4"x6 1 /8"x95 13/16" (120x155x2434) (x1) 4 3/4"x6 1/
8"x9513
/16" (120x155x2434)
B01 FRONT BEAM
- A4M02980
(x1)
17
/16"x51/
4"x933
/8" (36x1 34x2371)
B02 FRONT BEAM -A4M02981
(x1) 1 7/16"x5 1/4"x105 5/8"
(3
6x134x2683)
B03 BACK BEAM
- A4M02982
(x1)
17
/16"x51/4"x
933
/8" (36x134x2371)
B04 BACK BEAM - A4M02983
(x1)
17
/16"x
51
/4"x
1055
/8" (36x134x268
3)
BOS
FRONT BEAM - A4M02988
(x1)
17
/16"x51/4"x
1055
/8" (36x134x2683)
B06 FRONT BEAM
- A4M02989
(x1)
17
/16"x
51
/4"x93 3/8"
(3
6x1
34x2371 )
B07 SIDE BEAM
- A4M02991
(x1)
17
/16"x51/4"x114 3/16" (36x134x2900)
B08 SIDE BEAM
- A4M02992
(x1) 1 7/16"x51/4"x
1143
/16" (36x134x2900)
B09 BACK BEAM
- A4M02995
(x1
)
19
/16"x
31
/8"x104 3/16" (40x80x2647)
B10 BACK BEAM -A4M02996
(x1) 1 9/16"x3 1/
8"x91
15/16" (40x80x2335)
