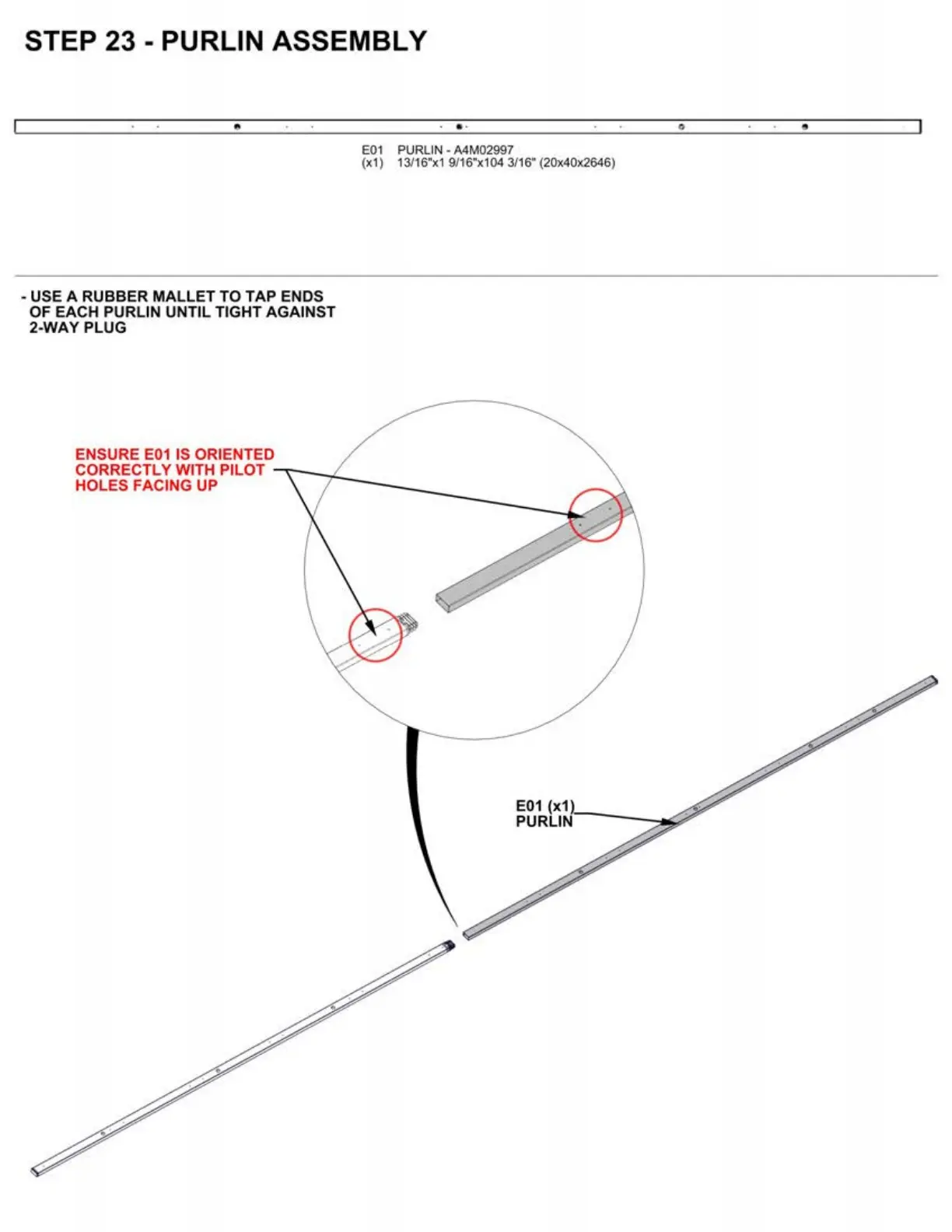

STEP 23 - PURLIN ASSEMBLY
- USE A RUBBER MALLET TO TAP ENDS
OF EACH PURLIN UNTIL TIGHT AGAINST
2-WAY PLUG
ENSURE
E01 IS ORIENTED
CORRECTLY WITH PILOT
-,- __
HOLES FACING UP
• •·
E 01 PURLIN - A4M02997
(x1) 13/16"
x1 9/16"x104 3/16" (20x40x2646)
