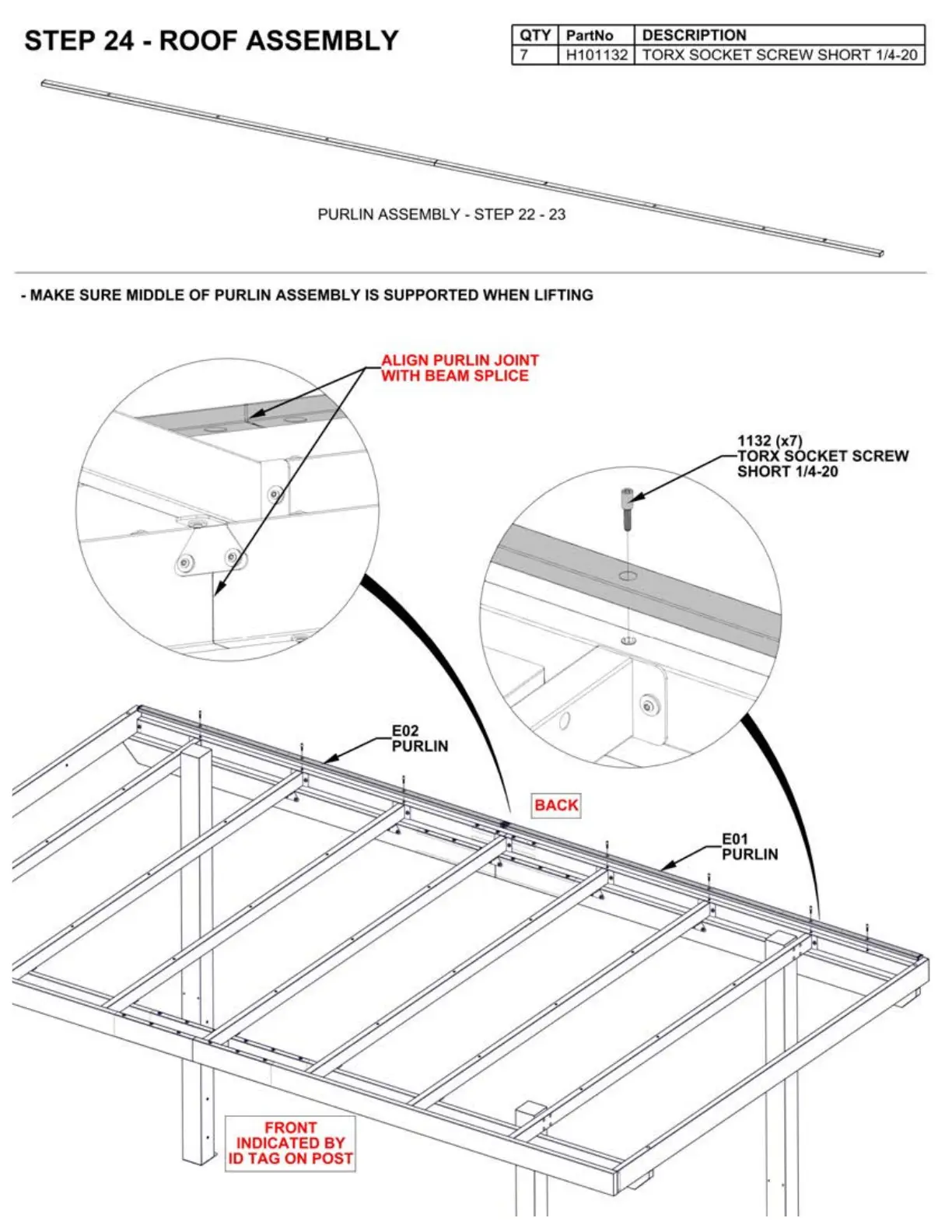

STEP24-ROOFASSEMBLY
QTY PartNo DESCRIPTION
7 H101132 TORX SOCKET SCREW SHORT 1/4-20
PURLIN
ASSEMBLY - STEP 22 - 23
- MAKE SURE MIDDLE OF PURLIN ASSEMBLY IS SUPPORTED WHEN LIFTING
FRONT
INDICATED BY
ID TAG ON POST
ALIGN PURLIN JOINT
WITH BEAM SPLICE
1132 (x7)
TORX SOCKET SCREW
SHORT 1/4-20
